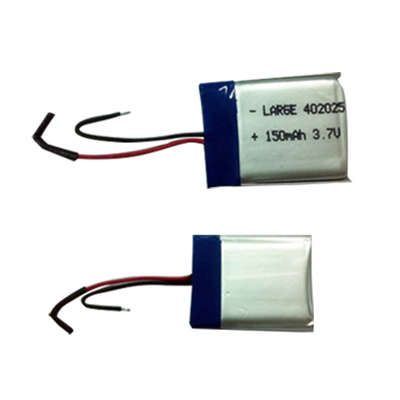

Model PL402025 - 3.7V 150mAh Small Lithium Polymer Battery

Model Number: 08AQ980-02

Battery Cell: 402025P/150mAh/3.7V

Nominal Voltage: 3.7V

Nominal Capacity: 150mAh

Internal Resistance: ≤200mW

Dimension: Max: 26.5×20.5×4.1mm

Weight: 4±1 g

Charge Voltage: 4.2V

Charge Current: 0.5C

Charge method: CC/CV (constant current/constant voltage)

Discharge Current: 0.2C(Standard)1C(Max)

Discharge Cut-off Voltage: 2.75V

Operating Temperature: Charging Temperature: 0~45°C

Discharging Temperature:  -20~60°C

Voltage of shipment: 3.9V~3.98V

Storage Temperature: 1 month    -20~60°C

3 month    -20~45°C

1 year      -20~25°C

Relative Humidity: 65±20%
