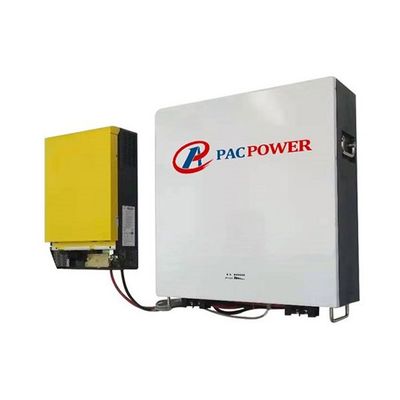

3kw Solar System Off Grid Hybrid Inverter 5kwh Lithium Battery For Home Energy Storage Systems

The battery is compatible with many inverter brands, such as SMA, Sol-ark, Schneider, Solis, Sofar, Sungrouw, Solax, Goodwe, Growatt, Victron, Deye, InfiniSolar, Luxpower, etc

This system looks simple, but works powerful. It is the most cost-effective solution for solar storage system. Don`t hesitate to send us inquiry!

Inverter

• Application : Off-grid home energy storage systems
• Grid Type : Single Phase
• Output Frequency (selectable) : 60 Hz or 50 Hz
• AC Output Voltage : 220V-230V-240VAC
• Rated AC Output and UPS Power (W) : 3500VA/3500W
• System DC voltage : 48VDC
• Surge Power(off grid) : 7000VA
• Parallel Option : YES. Up to 6 units
• Monitoring Option : WiFi or GPRS
• Peak Efficiency : 93%
• Transfer Time : 10ms (For Personal Computeis); 20ms(ForHome Appliances)
• Waveform : Pure Sine Wave
• Dimension : 470x320x135mm
• Net Weight : 11.5kg
• Communication Interface : USB/CAN/RS485

Solar Charger & AC Charger

• Max. PV Array Open Circuit Voltage : 450Vdc
• Max. PV Array Power : 4500W
• Operating Voltage MPPT Range : 120~430vdc
• Battery Overcharge Protection : 60Vdc
• Max. Solar Charge current : 80A
• Max. AC Charge current : 60A
• Max. Charge current : 80A

Battery

• Lithium Battery : 5kWh-48V
• Rated kWh Capacity @ C/2 : 5 kWh
• Usable kWh Capacity @ 80% DoD : 4 kWh
• Max Combined Output Power : 5 kW DC
• Max Combined Charge Current : 100 Adc
• Max Combined Discharge Current : 100 Adc
• Charging Temperature : 32°F to 50°F (0°C to 10°C): 20A charging current50°F to 122°F (10°C to 50°C): 100A charging current
• Depth of Discharge : Up to 100% DoD
• Round Trip Efficiency : 98%
• Cycle Life : 6,000+ cycles (@ 80% DoD)

Features of 3kW off grid solar system with 5kwh lithium battery:

• Built-in MPPT, MPPT voltage range 120V~430Vdc
• Pure sine wave AC output
• Solar and utility joint to power the loads
• Parallel operation up to 6 units
• WIFI/ GPRS remote monitoring
• CAN/ RS485 communication for BMS
• Electric vehicle grade top quality lithium battery
• Cycle life of more than 6000 times

Reliable quality -- We have more than 10 years of battery industry experience. Automated production line and precise equipment. In strict accordance with international standards for production inspection, to ensure product quality and safety.

Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional R&D team, we can provide professional customized and one-stop services.

Taking responsibility -- PAC members to proactively take responsibility, we always offer the best solution to our customers.
