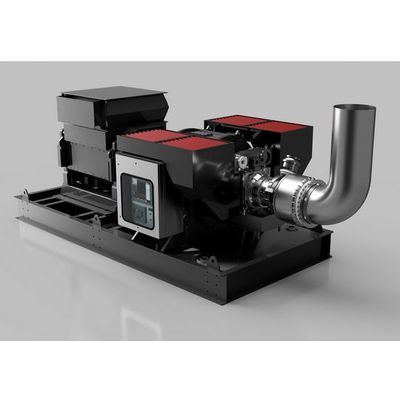

Turbine Marine - 3MW Turbine Prime Mover Generator

• 3MW Generator Skid. ISO 20′ Container ready.
• 20′ X 8′ X 8′ Plus Exterior mounted exhaust (+2′)
• Weight 39,500 lbs Dry weight (less container)
• Liquid or CNG Gas ready
• Option: Dual Fuel Ready (Liquid and Gaseous)
• Option: Muffler silencer
• Option: Trailer with or without ISO container
• 60Hz/50Hz
• 60Hz Voltages: 440-480 VAC / 600 VAC / 4160 VAC / 7.2KV / 13.8KV

Single Cycle Performance @ ISO 59 / 15 CF

• Output Performance: 3,086 kW
• Heat Rate: 12,716 Btu/kWh | 13,415 KJ/kWh
• Thermal Efficiency: 26.8%
• Fuel Flow: 1,910 lbs/hr | 866 kg/hr
• CNG /LNG (1060 btu/cf): 760 scf/min
• Heating Value (LHV): 20,548 Btu/lb | 47,786 KJ/kg
• Fuel Pressure Required (min/max) 200/250 Psig | 1,379/1,723 KPA
• Exhaust Gas Flow 28.0 lb/s | 12.7 kg/s
• Exhaust Gas Temperature 1,115 F | 602 C
