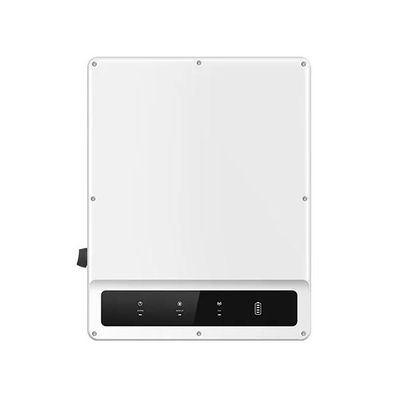

Huijue - Model 3-4 MPPT -40-50KW Solar lithium ion Battery Three-Phase Inverter
The 40-50KW three-phase high voltage energy storage inverter is the advanced solution for medium and small-scale commercial and residential energy applications. This series comes in power capacities of 40kW and 50kW and is able to support multi-machine parallel operations to configure scalable systems. Fitted with an STS switch for switchover without interruption, this inverter can work as a UPS system and support generator integration. Compatible with high-power solar modules up to 210mm and 182mm components, the system allows for a maximum input current of 21A and 1.1x of continuous overload on the grid side. Safety features are enhanced with DC arc protection and dual AC/DC surge protection that guarantee safe operation of your energy system in various environments.
What are the characteristics of 40-50KW Solar Battery inverters?
- Seamless UPS Functionality: Equipped with an STS switch for seamless transitions between grid and off-grid modes, enabling fast response within less than 500ms.
- Wide Battery Voltage Range: Supports a wide range of battery voltages-from 200-800V-thereby ensuring flexibility on the type of batteries.
- Overload Capacity: Delivers 1.1x continuous overload on the grid side to meet high-power application demands.
- Advanced DC Arc Protection: AFCI 3.0 technology with AI deep learning algorithm for accurate arc fault recognition, ensuring electrical safety.
- Dual Surge Protection: AC/DC second-level surge protection will protect your system against any kind of electrical surge.
- IP66 Rated: With a waterproof and dustproof structure, it is an IP66 rating that promises dependability even in the most adverse conditions.
- High Power Compatibility: Up to 30A current, it supports maximum power compatibility with high-power solar modules.
- Fast Turnoff: Realizes less than 500ms fast shutoff in case of fault, far above the industry standard of 2.5 seconds.
What are the advantages of 40-50KW Solar Li-ion Battery Inverters?
- Energy Efficiency: The system effectively reduces energy costs by managing energy usage through peak shaving and filling of valleys, hence increasing energy independence for both commercial and residential applications.
- Safety and Reliability: Industry-leading safety through AI-driven AFCI technology is ensured, while the inverter will also realize rapid fault response to protect your PV system.
- Scalability: The reason it`s flexible for growing businesses, and extending home installations with ever-growing demands in energy, is that it operates in parallel with multi-machines.
- Seamless Power Backup: Due to the built-in STS switch, the continuity of critical loads-such as refrigerators, air conditioners, and other appliances-is not disturbed during power outages in the grid.
- Compatibility with Modern Solar Modules: High-power solar components of up to 30 A are supported, so it`s future-proof with newer generations of solar technologies.
Where can I use 40-50KW Solar LiFePO4 Battery Inverters?
- Commercial Solar Power System: Perfect for businesses that want to save energy at maximum capacity and have dependable backup power during grid downs.
- Residential Energy Storage: It is designed to make sure that bigger homes have reliable energy storage for backup requirements, transitioning the power supply seamlessly in the case of grid failures.
- The Off-grid And Hybrid Systems: Work perfectly when the location is too far from the grid or a hybrid energy system in which stable and efficient power management is required.
