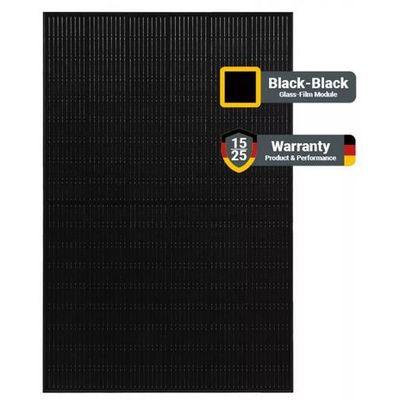

Fabrik - Model S4 -400-410W Halfcut Black-Black Mono Module

By separating the cells into two equal parts (halfcut technology), the module achieves a higher output than a full cell module. The current flow in the cell is halved and the power loss is thus reduced. Due to the changed cell arrangement, the Mono S4 Halfcut module offers further advantages. On the one hand, the improved low-light behaviour and, on the other hand, the behaviour in the case of shading. If a full-cell module no longer produces any power when shaded, the Solar Fabrik Mono S4 Halfcut can still achieve up to 50% power.
The Multibusbar-technology enables even higher outputs, greater reliability and higher (electrical) load capacity of the modules.

Warranty claims are 15 years on the product and 25 years on the performance. For more information, please refer to the product data sheet and the warranty conditions.

• Number of cells: 108 monocrystalline half cells
• Size of cell: 182 x 91 mm
• Module dimensions: 1722 x 1134 x 35 mm
• Weight: ca. 21.4 kg
• Type of Frame: Anodized aluminium alloy
• Glass thickness: 3.2 mm
• Max. system voltage: 1500 V
• Reverse current loading capability: 20 A
• Junction box rating: IP68
• Module connection: MC4 or similar
• Cable diameter: 4.0 mm²
• Cable length: (+) ≥ 1200 mm, (−) ≥ 1200 mm
• Snow load: 5400 Pa ≅ 550 kg/m²
• Allowable Hail Load: 25 mm iceball with velocity of 23 m/s
