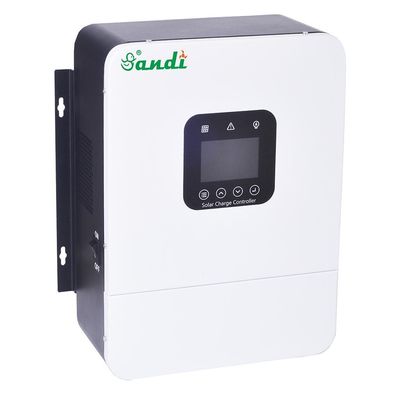

Sandi - Model SDC480V-100A - 48kw Solar Charge Controller Regulator

SHARE

Off-grid Solar power generation system including solar panel array, PV Combiner box, solar charge controller, battery group, Off-grid inverter, etc. In the sunshine, the solar panel array convert solar energy to DC energy and charge to the battery group by the charge controller. And convert the DC to AC for the loading through off grid inverter. To meet different power stations’ need, there are 48V?96V?120V?192V?220V?240V?360V?480V 540V,600V and other normal series voltage level base on different battery voltage of off-grid PV power station system project.

Most popular related searches
solar charge control
solar charge controller
charge controller
solar panel array
solar charge
off-grid inverter
solar power generation system
off-grid solar power
solar controller
solar panel
  • Adopt multistep sequential limiting current charge method, auto control multiple solar array connection or shut off orderly according to the battery group voltage change tendency.
  • With auto protection function of over charge, electronic short circuit, anti-reverse protection etc…
  • The big screen LCD display. Clearly present the working status of the solar panel, battery and controller.(solar voltage, current, power display, battery charging current, voltage, charging power, power display.)
  • Multi-function meter shows the battery voltage, the charging current, charging power, grand    total quantity of electricity...
  • Power switch driving circuit is completely isolated from sampling circuit. The control signals is transmitted by opto isolation, with super-high disturbence rejection and stability.
  • All the control adopts industrial-grade chips, which can work normally in cold, hot, humid environment.
  • Overcharge protection, reverse polarity protection, damage protection of the battery group.
  • Prevent the battery group reverse charging to the solar panel array at night.
  • There are lightning protection device inside the controller. Limit instantaneous overvoltage which entered into solar panels within a device or system can withstand voltage range; or unload the strong lightning current into the ground. To protect the equipment from lightning surge and damaged.
  • Model No.: SDC480V-100A
  • Brand Name: SANDI
  • Country of Origin: China
  • Unit Price: US $ 1200 / pc
  • Minimum Order: 1 pc
