Fethium New Energy

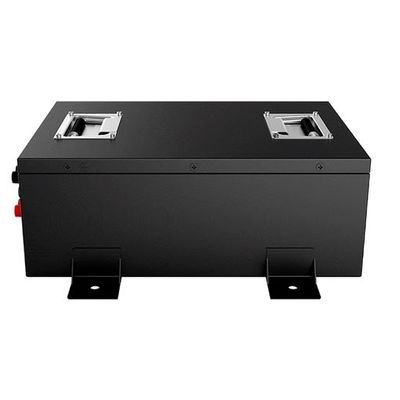

LiFePO4 - Model AGV -PB48V50Ah -48V 50Ah Trolley Power Battery
AGV trolley LiFePO4 power battery 48V 50Ah is a very advanced power battery, it uses LiFePO4 technology, has the characteristics of high energy density, low cost, low temperature, high reliability, long life and so on.
Most popular related searches
lithium battery
lithium ion battery
battery short circuit protection
LiFePO4 battery
low-carbon energy
low carbon energy
battery temperature
battery protection
energy consumption
energy saving
- Brand: Fethium
- BUY: 1 to 1 customization
- SKU: PB48V50Ah Categories: 48v lithium ion battery, LiFePO4 battery Tag: 48V 50Ah
Introduction:
AGV trolley LiFePO4 power battery 48V 50Ah is a very advanced power battery, it uses LiFePO4 technology, has the characteristics of high energy density, low cost, low temperature, high reliability, long life and so on. It has a voltage of 48V and a capacity of 50Ah, which can provide sufficient energy for the AGV car.
In addition, the AGV trolley LiFePO4 power battery 48V 50Ah has low internal resistance, high efficiency and high safety. It adopts a special structure and advanced manufacturing process, which can effectively reduce the battery temperature, reduce battery energy consumption, and avoid overheating, overdischarge and other safety hazards. In addition, its low-temperature performance is also excellent, and it can still work normally in a low-temperature environment of -30°C.
AGV car LiFePO4 power battery 48V 50Ah is a very advanced power battery, which can provide energy for AGV car for a long time and stably, and improve the operating efficiency and reliability of AGV car.
- Cell model: 0150651500/3.2V/10Ah
- Battery specification: 15S5P/48V/50Ah
- Nominal voltage: 48V
- Nominal capacity: 50Ah
- Charging voltage: 54.75V
- Charging current: ≤15A
- Discharge current: 100A
- Instant discharge current: 150A
- Discharge cut-off voltage: 30V
- Finished internal resistance: ≤100mΩ
- Battery weight: 30Kg
- Product size: 420*300*170mm (Max)
- Charging temperature: 0~45?
- Discharge temperature: -20~60?
- Storage temperature: -20~35?
- Temperature protection: 70?±5?
- Battery case: sheet metal case
- Communication management: CAN
- Lithium battery protection: short circuit protection, overcharge protection, over discharge protection, overcurrent protection, temperature protection, equalization, etc.
- Application field: AGV vehicle
- High current output
- The battery comes with temperature protection
- The battery comes with a power detection port
- CAN communication management: SOC management, fault warning
- Safe battery pack with long cycle life
- The cycle life of the battery pack is high, in line with the concept of low carbon, energy saving and environmental protection
- 1. Before use, please be sure to check whether there is liquid leakage inside the battery and whether the outer shell is damaged;
- Please charge the battery correctly according to the technical parameters of the battery;
- During use, you should pay attention to the temperature of the battery, generally not exceeding 50 degrees Celsius;
- After use, the battery should be charged and discharged to ensure the life of the battery;
- It is forbidden to disassemble the battery to avoid accidental injury.
