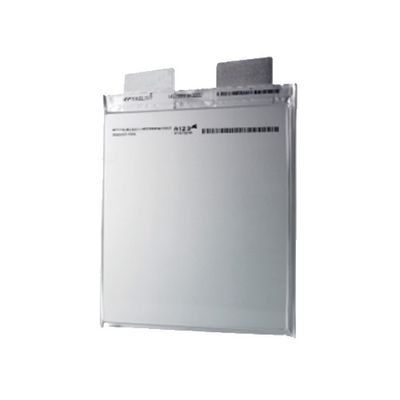

A123 - Model 6Ah LFP -48V Low Voltage Cell
A123`s patented Nanophosphate® lithium ion chemistry, High usable energy over a wide state of charge (SOC) range, Excellent high pulse current charge/discharge capability, Excellent abuse tolerance and superior cycle life, High power over 5,600 W/kg and 10,000 W/L.
Ultra-high Power
Ultra-high power, energy saving and consumption reduction
Autonomous Property Rights
A123`s patented Nanophosphate® lithium ion chemistry
Long Efficacy
Support 20C continuous charging and 50C continuous discharge
International Security
The whole series passes international safety performance requirements
Customized Development
- MHEV and PHEV Passenger Vehicles
- 48V Start-stop systems
- Uninterruptible Power Supply
Cell Dimensions (mm)
4.0*160*227
Nail Penetration
Pass – EUCAR 3
Cell Weight (g)
280
Overcharge
Pass – EUCAR 3
Cell Capacity (minimum, Ah)
6.0
Over-discharge
Pass – EUCAR 3
Cell Energy (nominal, Wh)
21.8
Thermal Stability
Pass – EUCAR 4
Discharge Power (nominal, W)
1568
External Short
Pass – EUCAR 3
Voltage (nominal, V)
3.3
Crush
Pass – EUCAR 3
Specific Power (nominal, W/kg)
5600
Specific Energy (nominal, Wh/kg)
78
Energy Density (nominal, Wh/L)
152
Operating Temperature
-30°C~55°C
Storage Temperature
-40°C~60°C
