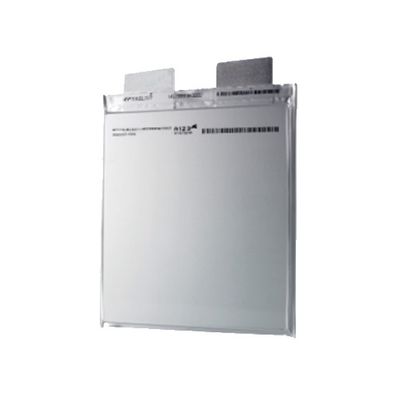

A123 - Model 12Ah LFP -48V Low Voltage Cell
A123`s patented Nanophosphate® lithium ion chemistry, High usable energy over a wide state of charge (SOC) range, Excellent high pulse current charge/discharge capability, Excellent abuse tolerance and superior cycle life, High power over 6,000 W/kg and 13,000 W/L.
Ultra-high Power
Ultra-high power, energy saving and consumption reduction
Autonomous Property Rights
A123`s patented Nanophosphate® lithium ion chemistry
Long Efficacy
Support 20C continuous charging and 50C continuous discharge
International Security
The whole series passes international safety performance requirements
Customized Development
- MHEV and PHEV Passenger Vehicles
- HEV Bus
- Uninterruptible Power Supply
Cell Dimensions (mm)
7.2*160*227
Nail Penetration
Pass – EUCAR 3
Cell Weight (g)
504
Overcharge
Pass – EUCAR 3
Cell Capacity (minimum, Ah)
12.0
Over-discharge
Pass – EUCAR 3
Cell Energy (nominal, Wh)
42.9
Thermal Stability
Pass – EUCAR 4
Discharge Power (nominal, W)
3024
External Short
Pass – EUCAR 3
Voltage (nominal, V)
3.3
Crush
Pass – EUCAR 3
Specific Power (nominal, W/kg)
6000
Specific Energy (nominal, Wh/kg)
85.1
Energy Density (nominal, Wh/L)
191
Operating Temperature
-30°C~55°C
Storage Temperature
-40°C~60°C
