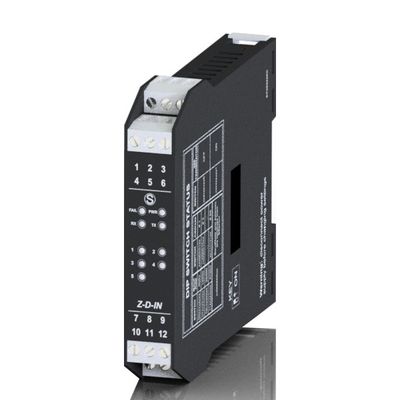

SENECA - Model Z-D-IN - 5-Channel Digital Input Module

SHARE

The Z-D-IN is a versatile 5-Channel Digital Input Module featuring RS485 Modbus communication capabilities. Designed for industrial settings, this module enables seamless integration in data acquisition and control systems. Its robust interface supports a wide range of digital inputs, making it an ideal choice for automating monitoring and control processes. The RS485 communication ensures reliable data transmission over long distances, vital for environments with extensive infrastructure requirements. Additionally, users can simplify setup and configuration with the available supporting software, enhancing operational efficiency. The module is part of the Z-PC bus system, allowing for fast mounting and connection. With its presence in power monitoring, electrical measurement, and more, this component is pivotal in modern industrial automation solutions, ensuring precise and timely data collection.

Most popular related searches
electrical measurement
power monitoring
electricity monitor
relay controller
electric power
electrical power

The Z-D-IN is used to interface 5 digital signals (PUSH BUTTON, LIMIT SWITCH, REMOTE, CONTROL SWITCH, RELAIS etc.) with all of control systems which are able to communicate by the protocol MODBUS RTU through the RS485 serial interface. A 16 bit counter is available on each input, the maximum frequency input is 100 Hz and it is possible to set one input as a fast counter with a maximum frequency of 10kHz. The module is ModBUS Slave and can be coupled with any ModBUS Master device. A 3-way galvanic isolation among Power supply // input // RS485 circuits assures the integrity of your datas.

  • Order code : Z-D-IN
  • Description: 5-CH Digital input module / RS485
  • Power supply: 10..40 Vdc; 19..28 Vac (50-60 Hz)
  • Inputs: 5 CH (reed, proximity, pnp, npn, contact) with common negative, self powered 24 Vdc, isolated, protected from transient up to 600 W/ms
  • Counters: 4 @ 16 bit, max frequency 100 Hz; 1 @ 32 bit, max frequency 10 KHz
  • Anti rebounce filter: Settable from 5 to 250 ms
  • Communication: RS485 a 2 fili, ModBUS RTU slave protocol
  • Dimensions: 17,5 x 100 x 112 [mm]
  • Mounting: 35 mm guide DIN 46277

SHIPPING AND EXPORT INFORMATION

  • PRODUCT CODE Z-D-IN
  • GROSS WEIGHT kg 0.16
  • ORIGIN IT
  • CN (Combined Nomenclature) 85389091
  • ECCN 5A991
