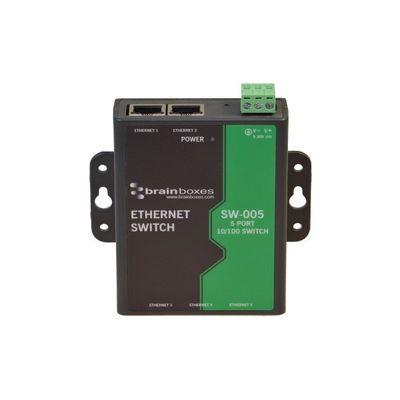

Brainboxes - Model SW-005 - 5 Port Unmanaged Ethernet Switch Wall Mountable
Light Industrial/Commercial Ethernet 5 Port unmanaged switch. Galvanically Isolated Ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, optional DIN Rail mount accessory available (see MK-048).
Most popular related searches
- Ethernet : Ethernet Ports : 5
- Ethernet Speed : 10/100 Fast Ethernet
- PoE : No
- Power : Power Input : 5V - 30V DC input, reverse polarity protected
- PoE Power Budget : NA
- General : Operating Temperature Range : -10 °C to +60 °C / 14 °F to +140 °F
- Storage Temperature : -10 °C to +70 °C / +14 °F to +158 °F
- Form Factor : Wall Mounted
- Power Consumption : 1.1 Watts Max : 220 mAmps@+5VDC/36mAmps@+30VDC
- Product Weight : 0.134 kg, 4.73 ounces
- Product Dimensions : 107x102x28 mm, 4.2x4.0x1.1 inches
- Packaged Weight : 0.212 kg, 7.48 ounces
- Packaged Dimensions : 160x135x49 mm, 6.3x5.3x1.9 inches
- GTIN (barcode) : 837324009866
- Interface : Ethernet : Ethernet Interface takes advantage of a companies pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world.
