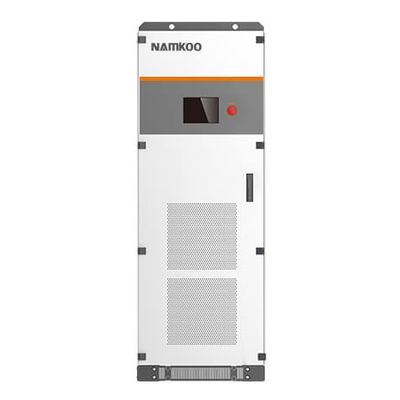

Namkoo - Model NK-MEGA0500 -500KW 630KW Power Conversion System (without isolation transformer)
The MEGA power conversion system is specifically engineered for grid-level use. It features a parallel connection for multiple machines, grid black start capability, SVG functionality, and supports the IEC61850 communication protocol. This PCS is versatile and can cater to various power generation, transmission, distribution, and consumption scenarios.
Most popular related searches
power conversion system
isolation transformer
power generation
off-grid inverter
inverter
grid inverter
power transmission
transformer isolation
power distribution
inverter power
Voltage range(V) : 600~900
Max output power(kVA) : 693
Rate output power(kW) : 630
Rated voltage(V) : 400
Rated frequency (Hz) : 50/60
Ingress protection : IP21
Cooling : Forced air
Dimension W*D*H (mm) : 1,000*700*2,050
- Passed IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, CGC certification test
- High-performance DSP, optimized control circuit design, more stable system
- Wide battery voltage range, support multiple battery access
- Reactive power and active power adjustable
- The maximum efficiency reaches 98.7%
- With grid-connected charge and discharge, off-grid independent inverter function
