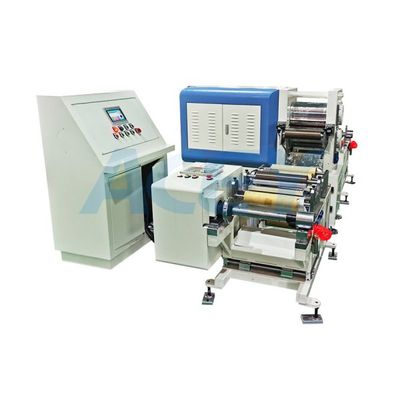

ACEY - Model RP-500x550 - 500mm High Precision Lithium Battery Rolling Press Machine
ACEY-RP-500 × 550mm Continuous Hydraulic Rolling Press Machine With Winding And Unwinding System, the biggest roller press width is 500mm. Brand: ACEY. Item No.: ACEY-RP-500x550. Compliance: CE Certified. Warranty: One Year warranty with lifetime support. Order(Moq): 1 set. Product Origin: China. Lead Time: 7days.
Most popular related searches
- Roll size : φ500mm × 550mm;
- Roll speed : 2 ~ 12r /min, adjustable for stepless speed change;
- Rolling linear speed : 2~18 m/min
- Maximum working pressure : 500KN-6000KN;
- Power requirements : 380V/50Hz, total power about 15KW;
- Compressed air : pressure 0.5Mpa ~ 0.7Mpa, flow rate 0.04M 3 /min;
- Total weight of equipment : about 10T
- Equipment installation ground load-bearing requirements : >4.5 T/m 2, and place a backing plate at the bottom of the equipment.
- Equipment size : The roller counter part is about L3100mm × W1000mm × H2000mm
- The size of the equipment after installation is about L7000mm × W3100mm × H2000mm
Tension unwinding → correction → belt platform → trimming dust removal (dust collection) → pole piece buffering → rolling (upper and lower rollers with brackets) → pole piece buffering → correction → tension winding
- This machine has a 45# steel frame with a large slider structure, large bearing force, small deformation, large rolling force and high rolling speed;
- Using a constant pressure and limited gap pressing method, the intermittently coated battery pole pieces can be continuously pressed. The pressure is stable, the roller cylinder is high, the rolling sheet is uniform, and the deformation is small. Greatly improve production efficiency and reduce personnel workload;
- With trimming, dustproof device, brush function;
- With the function of roller surface cleaning mechanism;
- With corrective tension control unwinding, tape receiving platform;
- With corrective tension control winding;
- With pole piece buffer device;
- With roller removal device;
- The electric booster system adjusts and controls the lifting of the oil cylinder through the man-machine interface touch screen to drive the lifting of the rolling roller;
- Constant pressure automatic control, through the man-machine interface adjustment to change the roller oil pressure;
- The roll movement value is displayed by the man-machine interface screen;
- The man-machine interface input adjustment changes the clearance of the oil pressure to the roll of the roller machine.
