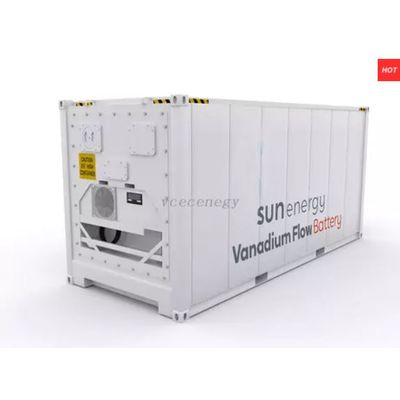

VCEC - Model VRFB-50 - 50KW Module Containered Vanadium Redox Flow Battery Energy Storage System

Model: PS-50-A. Rated Energy(kWh): 250. Rated power(kW): 50. AC charging input (i.e. grid or diesel for charging): Three-phase 380Vac, 50Hz. DC output voltage (Vdc): 50. Battery pack voltage range(Vdc): 104-161. Battery pack rated voltage (Vdc): 124.8. Maximum current(A): 480. Depth of discharge (%): 100. Ambient temperature (?): -75. Communication Interface: RS485 / Ethernet. Communication protocol: ModbusTCP / Modbus RTU. Occupation size (L×W×H): 12m×3m×4m (40FT Container). Total weight(t): 40. Shipping weight(t): 20.
