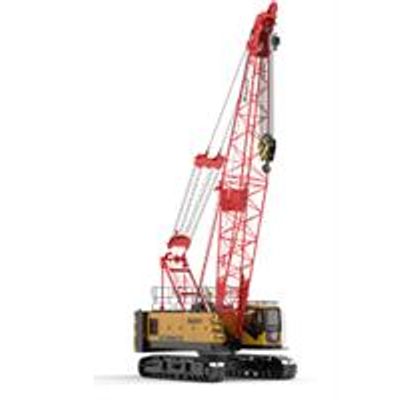

Sany - Model SCC550A -55 Ton Crawler Crane
Model: QSB5.9-C210 (Chinese Standard Tier III). Rated power: 154kW/2,200rpm. Total displacement: 5.91. Max. torque: 820N.m/1400rpm. Starting motor: 24V-6.0kW. Accumulator: two 12V battery in serial. Fuel tank: 400L.
Most popular related searches


Performance
- Max rated lifting capacity 55t
- Max lifting moment 203.5 tm
- Max lifting moment with fixed jib 112 tm
- Boom length 13-52 m
- Fixed jib length 6.1-15.25 m
- Longest (boom+fixed jib) 43+15.25 m
- Boom luffing angle 30°-80°
- Fixed jib offset angle 10°, 30°
- Max Lifting Capacity: 55t
- Max Lifting Moment: 203.5t·m
- Boom Length: 52m
