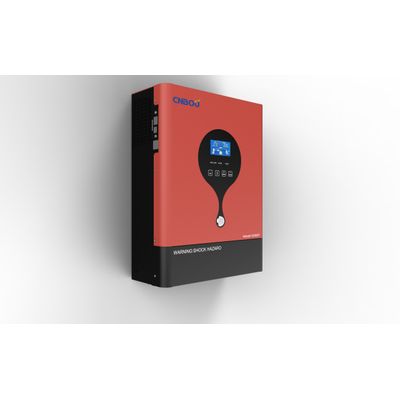

CNBOU Helios III - 5.5KW Off Grid Solar Inverter

Helios III series cost-effective 5.5kw off-grid solar inverter,  Supports without battery operation. Built-in MPPT solar charge controller, supports solar panel input 120Vdc-450Vdc, open circuit voltage 500Vdc, maximum solar panel input power up to 5500watt, charging current up to 100Amp, remaining part can be directly supplied to the load. The AC charging part adopts the latest bi-directional charging technology and shares the transformer with the main inverter so that the period charging current is up to 80Amp.  48Vdc 5.5Kw supports up to 4000watt AC charging. 5.5Kw pure sine wave AC output, suitable for all types of loads, such as refrigerators, air conditioners, compressors, motors, etc. Double peak power makes it support more able to carry the load. It is the best choice for solar systems in homes, RVs, yachts, offices, etc.

These HeliosIII 5.5kw off-grid solar system battery-free operation function makes the solar systems less costly to build. Use the solar panel to supply power directly to the load in good light conditions to complement utility power. Use RS232/RS485 to manage with BMS of lithium battery through Modbus or CAN communication protocol to make the system run more stable and to protect the lithium battery safely to make its life longer. Support WIFI or 4G to realize cell phone apps to monitor the system.

Helios III(H3) series 5.5kw off-grid solar inverter makes you set up an off-grid solar system with lower cost, power, and stable. It is your best off-grid inverter choice.

1. 5.5Kw Design, 11Kw Peak Power
2. 10ms(For personal computers),20ms(for Home appliances)
3. Support LifePO4, AGM, and Gel battery system
4. CAN or Modbus for BMS
5. Support WIFI/4G to IOS or Android app
6. Support without battery to run off grid solar system
7. AC charging part adopts the latest bi-directional charging technology.

1. GB/T19001-2016 idt ISO9001:2015.
2. Standard high-quality components.
3. Quality inspection of the 5 processes of the assembly line.
4. 100% full solar energy and load 60 minutes aging.
5. Before packing all functions checked.
