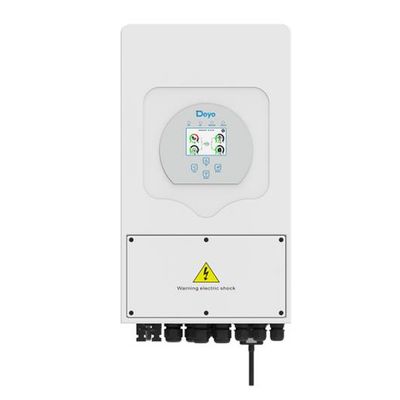

Deye Sun - Model 5K-SG03LP1-EU -5kw Hybrid Inverter
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. – Generator or Utility – PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.
Most popular related searches
hybrid inverter
lithium battery storage system
single phase solar inverter
solar inverter
lithium battery storage
battery storage system
inverter
lithium battery
solar system design
custom solar system
Deye Sun 5K SG03LP1 EU 5kw Hybrid Inverter 5000W Single Phase Solar Inverter
-
Model Number: Deye SUN-5K-SG03LP1-EU
-
Rated PV Input Voltage (V): 370 (125~500)
-
Output Frequency and Voltage: 50 / 60Hz; L1/L2/N(PE) 120/240Vac (split phase), 208Vac (2/3 phase), L/N/PE
-
220/230Vac (single phase)
-
Grid Type: Split phase; 2/3 phase; Single Phase
-
Size: 420W×670H×233D(mm)
-
Type: DC/AC Inverters
-
Inverter Efficiency:97.60%
-
Certificate: VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002,
-
NBR16149/NBR16150
-
Warranty:5 years
What can Dawnice do?
-
High Quality Products
-
DDP Service
-
Friendly and Professional Customer Service
-
Solar system solution design
-
Solar inverter, lithium battery storage system also are available.
-
Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
-
Colorful touch LCD, IP65 protection degree
-
6 time periods for battery charging/discharging
-
Max. charging/discharging current of 190A
-
Max.16pcs parallel
-
DC couple and AC couple to retrofit existing solar system
-
Support storing energy from diesel generator
-
Max. battery charge efficiency of 95.4%
-
Unique Smart Load application and Grid peak shaving function
-
4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
-
Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.
