Solar-Light - Model LS1000-6S-009 - 6" (15.25 cm) 1000W Pre-Irradiation Solar Simulator
1000W Pre-Irradiation Solar Simulator Kit specifically designed for the pre-irradiation step during in vitro broad spectrum sunscreen testing. Fully compliant with the most current FDA and ISO requirements. The 6″ (15.25 cm) Class A beam can irradiate up to 9 PMMA plates simultaneously.
Solar Light’s state of the art single output LS1000-6S-009 Pre-Irradiation Solar Simulator Kit produces solar UV radiation in the 290-400nm range, and can be quickly and easily configured by the user to provide UVA only, UVB only, UVA+B, or full spectrum sunlight optionally. This precision research-grade hardware is specifically designed for the pre-irradiation step during in vitro broad spectrum sunscreen testing, and is fully compliant with the most current FDA and ISO requirements. The 4″ (10 cm) Class A beam can irradiate up to 9 PMMA plates simultaneously. Everything required for instant testing right out of the crate is included direct from the factory: 1000W Solar Simulator, DCS-2 Dose Controller / Radiometer, NIST-traceable PMA-Series Erythema and UVA Sensors, molded or sandblasted PMMA Plates, and all related accessories!
Applications:
Pre-irradiation of PMMA plates during in vitro broad spectrum sunscreen testing.
Output Beam Size:
6” (15 cm) Square
Beam Orientation:
Vertical Downward, Vertical Upward, or Horizontal (please specify at order)
Lamp Type:
Xenon Short Arc (For All Models)
Lamp Wattage (Nominal):
1000W
Beam Uniformity:
±5%
Collimation:
±1.5-3 Degree Half Angle (For All Models)
Spectral Match Classification:
A (IEC 60904-9 2007)
A (JIS C 8912)
A (ASTM E927 - 05)
Temporal Instability Classification:
A (IEC 60904-9 2007)
A (JIS C 8912)
A (ASTM E927 - 05)
Uniformity Classification:
B (IEC 60904-9 2007)
B (JIS C 8912)
B (ASTM E927 - 05)
Light Ripple:
< ±2% rms
Working Distance:
5.0” ±2.0” (12.7 cm +/- 5.2 cm)
Long Term Drift (
<0.1%
Power Limit:
Factory Set Limit is 1,500 watts max
Operating Temperature:
32°F to 95°F / 0°C to +35°C
Storage Temperature:
-4°F to 185°F / -20°C to +85°C
Humidity:
0 to 95% non-condensing
Cooling:
Forced air
Medical Safety Certifications:
EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical
EMI/EMC:
EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field
Weight:
45 lbs. (20.5 kg.)

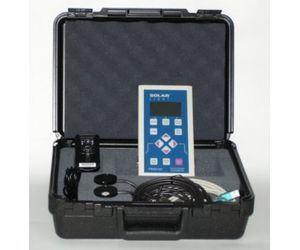

Product bundle features PMA Datalogging Organizer software, a battery charger, a USB cable, and a hard cover carrying case. The two detectors shown are sold separately.
- Delivery is stock to two weeks
- Every product is calibrated to NIST traceble standards before shipment
- Meets UL 61010-1 Annex DVC specification
- Data logging up to 1024 data points with time and date stamp
- Analog output is standard for both channels
- Dual input allow use with two detectors
- 1 year Standard Warranty
High accuracy.
Highest grade filters are embedded into a solid cast aluminum housing which assures accurate, stable optical alignment. Low noise electronics and a 20 bit A/D converter allow high linearity, resolution and dynamic range.
Ease of use.
No computer knowledge is necessary to make measurements. Just aim the meter at the sun, align the image of the sun with the cross-hairs and push the button. In few seconds the measurement will be completed and the result stored in memory.
Portability.
A small hand-held device is all you need to perform measurements. No additional computer is necessary.
Instantaneous results.
The Aerosol optical thickness calculation algorithms are programmed in the MICROTOPS II and the final results of all stored scans can be conveniently viewed on the LCD. The raw data is also stored to allow retrospective adjustments of algorithms.
Non-volatile memory.
The raw data collected by the MICROTOPS II, as well as calculated results are stored in non-volatile memory. Each data point is annotated with date, time, site coordinates, solar angle, altitude, pressure and temperature.
Low cost.
By implementing the latest technology, instrument cost has been brought well below that of comparable sunphotometers, without sacrificing accuracy or features.
Computer interface.
Connection to a PC through a USB interface enables transfer of collected data. MICROTOPS Organizer, a Windows-based software automates data retrieval and archiving.
- Optical Channels: 340 ± 0.3 nm, 2 nm FWHM
- 380 ± 0.4 nm, 4 nm FWHM
- 440 ± 1.5 nm, 10 nm FWHM
- 500 ± 1.5 nm, 10 nm FWHM
- 675 ± 1.5 nm, 10 nm FWHM
- 870 ± 1.5 nm, 10 nm FWHM
- 936 ± 1.5 nm, 10 nm FWHM
- 1020 ± 1.5 nm, 10 nm FWHM
- Stray light: 340nm: 1E-6 λ 380nm: 1E-6 λ 440nm: 1E-5 λ<1.0μm
- 500nm: 1E-6 λ 675nm: 1E-6 λ 870nm: 1E-6 λ 936nm: 1E-6 λ 1020nm: 1E-6 λ Resolution: 0.1W/m² Dynamic range: >300,000 Viewing angle: 2.5° Precision: 1-2% Non linearity: max 0.002% FS Operating environment: 0 to 50°C, no precipitation Computer interface: USB Power source: 4xAA Alkaline batteries Weight: 21 oz (600 grams) Size: 4"W x 8"H x 1.7"D (10x20x4.3 cm)
- Microtops® II calibrations are carried out using a Langley plot. NIST N/A. [Hold]
