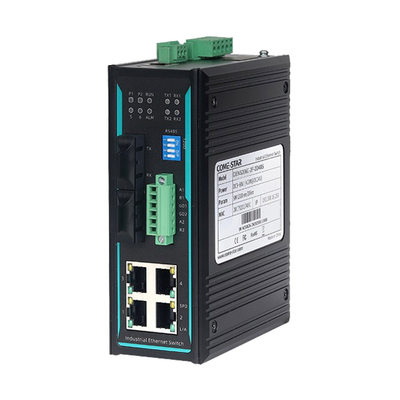

Come-Star - Model CIEN5206C-2F-2D485 -6-Port 100M Managed DIN-Rail Industrial Ethernet Switch with 2 Serial Data Ports
The CIEN5206C-2F-2D485 is a 6-port Layer 2 100M managed DIN-rail industrial Ethernet switch with 2 integrated RS485 serial ports, designed to provide seamless Ethernet and serial device networking in demanding environments. It adopts a store-and-forward switching mechanism and features strong bandwidth handling capability with automatic packet error detection, reducing transmission faults for stable, reliable, and efficient data communication. The switch supports web-based management and multiple network protocols, enhancing network efficiency, reliability, and security in complex deployments. Its fiber ports support a variety of optical modules for long-distance transmission with strong resistance to electromagnetic interference, while copper ports support 10/100M, full/half-duplex, and auto MDI/MDI-X, ensuring high bandwidth, low latency, and robust performance for industrial automation systems.
- 2×100M Fiber Ports, 4×100M RJ45 Ports, 2×isolated RS485 Serial Ports
- Support serial port to network conversion, capable of converting UDP, TCP, Modbus, HTTPD, WebSocket, MQTT, and other protocols, with support for virtual serial ports
- MW-Ring (recovery time < 20 ms @ 200 switches), ERPS, STP/RSTP for network redundancy
- AC85~264V / DC110~370V power input, or DC9~60V redundant power inputs
- Aluminum alloy shell, IP40-rated housing protection
- -40°C to +75°C operating temperature range
Offering 2 × 100M fiber ports (1×9 optical modules), 4 × 100M copper ports, and 2 × isolated RS485 serial ports, the CIEN5206C-2F-2D485 is built to withstand harsh industrial conditions. Its rugged design supports an operating temperature range of -40°C to +75°C and has passed rigorous testing for functionality, temperature extremes, safety, and EMC immunity. This high-reliability design makes it an ideal solution for industrial automation, energy systems, smart cities, intelligent transportation, and smart factories where secure and efficient communication is critical.
- Support serial port to network conversion, capable of converting UDP, TCP, Modbus, HTTPD, WebSocket, MQTT, and other protocols, with support for virtual serial ports
- Support MW-Ring, ERPS, STP/RSTP ring redundancy protocols for improved reliability
- Support IEEE 802.1Q VLAN for multiple broadcast domains and enhanced security
- Support QoS for prioritized traffic and congestion resolution
- Support broadcast storm suppression
- Support static multicast MAC address binding to reduce multicast broadcast
- Support MW-NMP proprietary network management protocol
- Support port mirroring and Ping for troubleshooting
- Support alarm notifications for power failure, port disconnection, and ring status changes
- Support high-level EMS protection for stable operation in harsh electromagnetic environments
