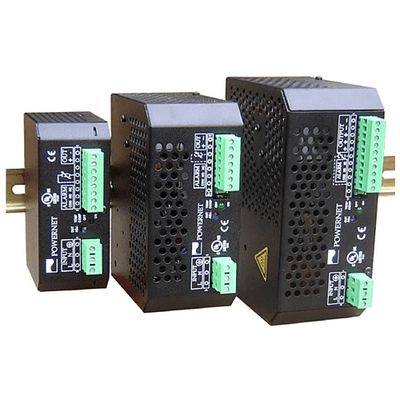

Helios - Model ADC5000 -60W - 250W DC Power Supplies/Battery Chargers
ADC 5000 is a series of compact and stable power supplies suitable for all types of industrial application. Suitable for battery chargers with very low ripple, built-in series diode and temperature regulated output voltage.
Most popular related searches
battery charger
DC power supply
wind power control
wind power
power generation
DC power generator
wind power system
industrial power supply
power system monitoring
battery temperature
- 60 to 250W output power ranges
- 12, 24, 36 & 48 VDC output voltage
- Input voltage ranges:
- 90 – 264 VAC (60W models only)
- 230/115 VAC (all other models)
- DC input in 60W units (85…200 VDC)
- Temperature compensated battery charging
LED indication for supply output voltage. Stable, mechanical construction, high efficiency, and convection cooling ensure long service life. Available with 12, 24, and 48 VDC output voltage.
- Input voltage 230/115 VAC
- Output voltages 12, 24, 36 or 48 VDC
- Statistical MTBF >3 000 000 hours
- Built-in output series diode
- Temperature-compensated battery charging
- Wide output adjustment range
- Efficiency 82…90%
- Operating temperature –40 °C…+70 °C (see derating)
- EMC EN55022B (telecom)
- Build-in series diode option for floating output and redundant configuration
- R = rugged model for harsh environment with coated PCB and components supported for shocks and vibrations
- Wind power control systems
- Weather measurement systems in harsh conditions
- Various industrial DC supplies
- Power generation auxiliary DC supply
- Stand-by battery charging solutions
