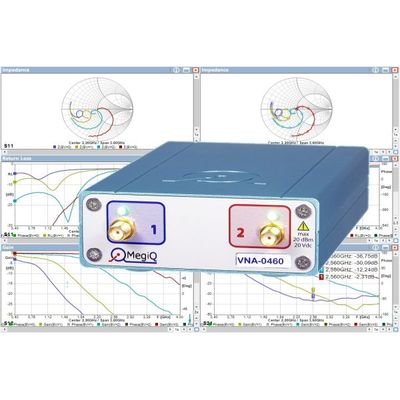

MegiQ - Model VNA-0460 - 6GHz 2-port Vector Network Analyzer
The VNA-0460 is a full bi-directional 2-port Vector Network Analyzer that is controlled from a PC through a USB connection.
The VNA-0460 is a full bi-directional 2-port Vector Network Analyzer that is controlled from a PC through a USB connection.
The included software provides full control over the measurements, settings, data storage and reporting.
This VNA is ideal for measuring all kinds of micro-circuits like antennas, attenuators, amplifiers etc. Its frequency range includes most popular telecom bands like GSM-GPRS-LTE, Wifi, DECT, GPS, ISM, Zigbee, Bluetooth.
The VNA Software has an integrated Match Circuit Calculator that Calculates a match circuit from the measurement and simulates this circuit in real time.
Also included are Time Domain Reflection (TDR) functions to analyze impedance over time (distance).
With its small size it can also be used near the antenna inside a large device or installation. It`s also ideal for on-site measurements.
Included in the product are:
- VNA-0460
- PC-software, for controlling, saving data &set-ups, analysis, reporting, etc.
- Power supply and USB Cable
- Documentation
- Carrying case
Available accessories include SMA, UFL and Balanced adapter and calibration kits.
With our VNA Application Programming Interface the VNA-0460 can be used for automated production testing.
As we supply to both small businesses and large cooperations we are flexible in our order process.
Our distributors can provide you with local support and handle the local customs and shipping procedures. They may also have special offers or pricing.
Our webshop offers the convenience of online ordering. For products that are in stock we usually ship in 1 or 2 days.
Ask us for a quotation and pay on invoice if you prefer to use the official corporate channels.
We accept EUR, USD and GBP.
- 2-port bidirectional VNA
- Measure S11, S12, S21, S22
- Frequency 400MHz to 6GHz
- Power -30 to +5dBm
- Sweep up to 20001 points
- Sweep speed up to 4000 samples per second
- Port calibrated
- Full 12-term normalization
- Parametric sweeps
- Match Circuit Calculator
- TDR and Time Gate Functions
- Deembedding functions
- Calkit manager
- Display formats: Source impedance, Port impedance, Return Loss, Forward Loss, SWR, Impedance (mag/ph), Impedance (Smith), Gain (mag/ph/group delay), Gain Polar.
|
VNA |
|
2 port full bidirectional |
|
|
Frequency |
Range Accuracy Resolution |
400 to 6000 2 5 |
MHz ppm kHz |
|
Return Loss |
P1, P2 |
>15 |
dB |
|
Generator |
Power Accuracy Resolution Harmonics |
-30 to +5 ± 1.0 0.5 < -35 |
dBm dB dB dBc |
|
Detectors |
Range Input attenuator Bandwidth |
-75 to +20 0 – 30 0.5 - 5 - 10 |
dBm dB kHz |
|
Directivity |
400MHz - 3GHz 3GHz - 6GHz |
55 45 |
dB dB |
|
Sweep
|
Max size Speed 1-port - 4000 pts Speed 2-port - 4000 pts Speed 1-port - 25 pts Speed 2-port - 25 pts Variables |
20001 1000 2000 17 33 Frequency, Power, P1 P2 attenuator Sweep variables can be combined and |
Points ms ms ms ms |
|
Software |
Operating System Recommended PC |
Windows XP – Windows 10 Intel I3 or I5 system |
|
|
Display formats |
Source impedance, Port impedance, Return Loss, Forward Loss, SWR, Impedance (mag/ph), Impedance (Smith), Gain (mag/ph/group delay), Gain Polar. |
VNA-0460 Product Info
- 2-port VNA
- Frequency range 400MHz to 6GHz
- Measuring power -30 to +5dBm
- Real time sweep speed
- Port calibrated
- Parametric sweeps
- Match Circuit Calculator
- TDR and Time Gate functions
