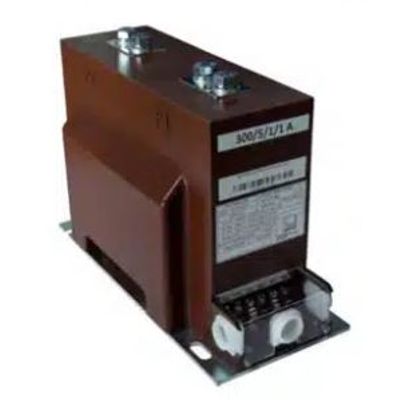

MBS - 7.2 + 12 kV Support Current Transformers
The 7.2 + 12 kV support current transformers are specifically designed for medium voltage indoor applications requiring precision in billing. They adhere to the DIN 42600-8 standard, which ensures compatibility and reliability in various industrial setups. These transformers are characterized by a slender design, optimizing space utilization without compromising performance. Their primary function is to provide accurate current measurement for billing purposes, crucial in applications where financial transactions are dependent on precise energy consumption data. With a focus on safety and efficiency, these transformers serve as a critical component in electrical distribution systems, particularly in environments where maintaining high power quality is a necessity. This product stands out for its specialized application in commercial and industrial sectors, where rigorous compliance to electrical standards is vital.
- Medium-voltage current transformers for indoor application, which are converting multiple primary currents proportional and in-phase into measurable and standardized secondary currents.
- These transformers are fully resin-hardened in polyurethane and are serving apart of their mair i function as a current transformer as well as a bus bar support.
- These CTs are applicable both for measuring and protection purposes.
- The medium-voltage current transformers are also available as multicore current transformers. The maximum quantity of cores depends on the chosen burden and accuracy class.
- Optionally, the current transformers are available with primary or secondary reconnection.
- At the primary reconnectable current transformers it is possible to choose between two primary nominal currents, depending if the connection is made in parallel or in series. The primary nominal currents can only be realized in ratio 1:2.
- At the secondary reconnectable current transformers the reconnection is realized by means of one or more secondary taps. Thereby the primary nominal current can be realized in various ratios. ^^^^_
