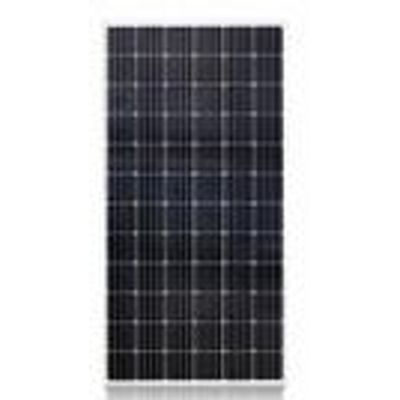

StarworldModel SW-72 -72-Cell Mono Solar Panels

SHARE

Cell Type: monocrystalline 156.75*156.75mm,5BB. Cell number:  72cells (6*12). Dimensions: 1960*992*40mm.  Front glass: 3.2mm High transmission,Low lron,Tempered ARC Glass. Backsheet: White Black-sheet. Junction box: Potted.IP 67.1500VDC.3Schottky bypass diodes. Frame: Anodized Aluminium Alloy Type 6063T5, silver color. Connector: MC4 Compatible
Cable: 4.0mm²/ 12AWG, 1200mm length. Standard Test Conditions: AM1.5 100MW/cm 25°C.
