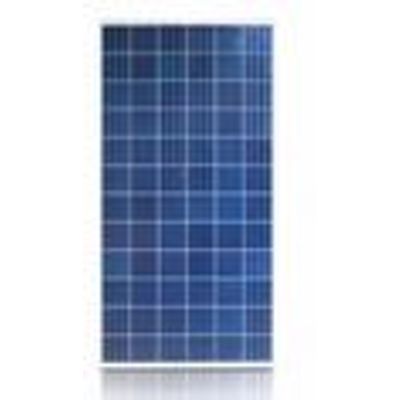

StarworldModel SWP-72 -72-Cell Poly Solar Panels

SHARE

Cell Type: polycrystalline 156.75*156.75mm,5BB. Cell number:  72cells (6*12). Dimensions: 1960*992 *40mm. Front glass: 3.2mm High transmission,Low lron,Tempered ARC Glass. Backsheet: White Black-sheet. Junction box: Potted.IP 67.1500VDC.3Schottky bypass diodes. Frame: Anodized Aluminium Alloy Type 6063T5, silver color. Connector: MC4 Compatible.
Cable: 4.0mm²/ 12AWG, 1200mm length. Standard Test Conditions: AM1.5 100MW/cm 25°C.
