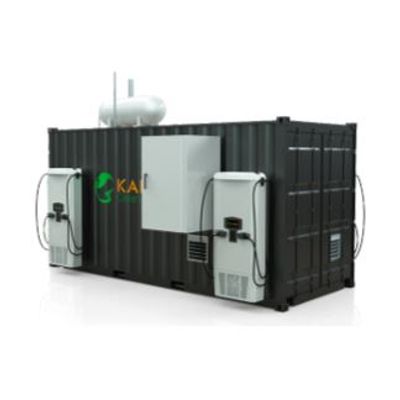

KCE - 750 KW Hydrogen Powered Microgrid

KCE - 750 KW Hydrogen Powered Microgrid

FromKaizen Clean Energy

SHARE

Available Power - NEVI charging locations require (4) 150 kW fast chargers operating simultaneously (600 kW of power), which electric grids may not be able to support.

Most popular related searches

DC fast charger

fuel cell module

electricity grid

electric vehicle charging

hydrogen fuel cell

hydrogen fueling

Economic Power - Demand charges and unnecessary fixed costs will limit EV adoption
Reliable Power - NEVI mandates 600kW available on demand, requiring backup during grid outage or blackouts

KCE H2 Reformer 230 kg/day
Low Pressure Buffer Tank 120 Gallons
Fuel Cell Module 185 kW Capacity
Battery Module 384 kWh (Safe, Sustainable Nickel-Zinc)
Inverters 480V 3-Phase Output
EV Chargers (4) 150kW DC Fast Chargers

Hydrogen Quality Fuel Cell Grade: ISO (14687:2019)
Max Power 750 kW
Time To Recharge Batteries 2 Hours
Power Required Grid Independent or 20 kW
Fuel Methanol / Water
Local Emissions No NOx, SOx, or Particulates

General Guidelines NFPA 2
Hydrogen Reformer ANSI / CSA FC5 (Similar to ISO 16110-1-2007)
Process Piping ASME B31.3, B31.12, and Section 8 VIII
Buffer Tank CGA Publication PS33
Fuel Cell IEC-62282-5-100 & -500
H2 Venting NFPA 2, 853, 54, & GCA Publication G5.5
