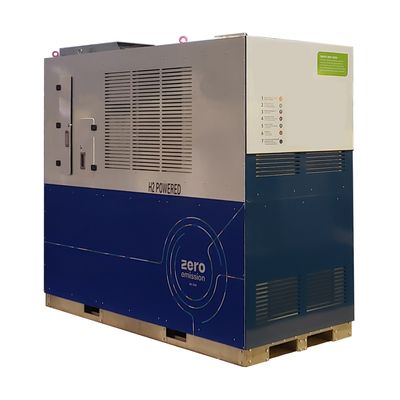

Commercial Fuel Solutions - 80-150 kVA Hydrogen Fuel Cell Operated Generator
Introducing a range of powerful, low noise and zero-emission hydrogen powered generator sets. The need for an uninterruptable power supply in mission-critical systems, such as hospitals and datacentres simply cannot afford to be compromised. This is why Commercial Fuel Solutions Limited have selected Power Generators that are facilitated with reliable PEM fuel cell technology.
Hydrogen can provide a safe and continuously rated solution for power generation. Equipped with proven technology, reliable Hyundai and Ballard fuel cell stacks provide the power output for this new range of hydrogen generator sets which enable a smaller installation footprint that which rely on external diesel fuel tanks or photovoltaic panels with storage.
Available with various output ratings, this is the largest model in our range and delivers 100kVA prime running power with up to 150 kVA 1-hour emergency standby power.
these hydrogen-powered generators are a versatile solution that enables you to take a firm stride towards net zero and stimulate the growing hydrogen economy.
These fuel cells require Class I, Grade D hydrogen to ensure prolonged stack life.
Weight 800 kg
Stock No ZEHP/T130
Generator Type
Installation Static
Fuel Cell Technology Hyundai
Performance
Output voltage 230v / 400v AC (50/60 Hz)
Prime Running Power 100 kVA
Emergency Standby Power 150 kVA
Continuous Running Yes
Life Span 15,000 hr
Fuel Supply
Fuel Type Class I, Grade D Gaseous Hydrogen
Inlet Pressure (Max) 200 bar
Consumption 67g/kWh
Environment
IP Class IP43
Operating Temp (Min) -5°C
Operating Temp (Max) 45°C
Certification
Standards CE
Certification UKCA pending
Guarantee
Guarantee 1 Year
