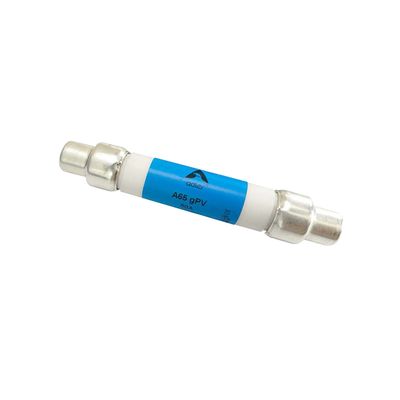

ADLER - A65 gPV 1500 Vdc 14x85mm Clip Mount Fuse
The A65 gPV 1500Vdc Fuse with dimensions 14x85mm is engineered for high-power photovoltaic (PV) applications. It is designed with a robust ceramic body and silver-plated caps to ensure optimal conductivity and durability. The fuse is rated for currents ranging from 10 to 50 amperes and boasts a high breaking capacity of 50 kiloamperes at 1500Vdc. With a time constant spanning from 1 to 3 milliseconds, this fuse offers rapid response in fault conditions, thereby providing excellent protection for PV systems. The product is also customizable to meet specific application requirements, making it versatile for various installations. For more technical details, you can download the specifications online or contact the Adler Service Team for personalized assistance.Most popular related searches
1500 Vdc, 14x85 mm PV fuse link with ceramic body
Rated Current: 10-50 A
Breaking Capacity: 50 kA at 1500 Vdc
Time Constant: 1-3 ms
Special design with silver plated caps for high-power
PV applications
Customizable for special application
