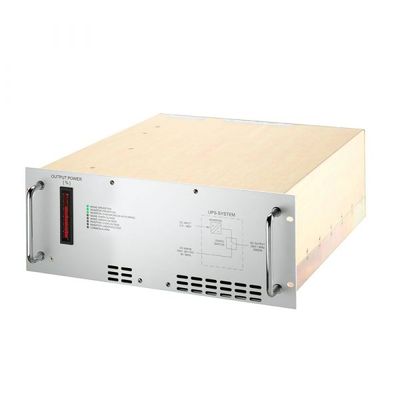

Schaefer - AC-AC Single or 3-Phase Output Frequency Converter
Frequency converters, single phase output from 500 VA to 15 kVA or 3-phase output from 1,5 kVA to 45 kVA.
Most popular related searches
- Input voltage:
- 115 / 230V AC, single phase, 47-400Hz or
- 200 / 400 / 480V AC, three phase, 47-400Hz
- Output voltage: 115 / 230 V AC, single phaseor 200 / 400 / 480V AC, three phases
- Output frequency: 50 / 60 / 400 / 800Hz (crystal stabilized) or programmable within40-400Hz or 400-800Hz
- Output power: 500VA – 45kVA
- Sine Wave
- Continuous short circuit protection
- Thermal shutdown with auto-restart for
- 1-phase inverters >1.2kVA
- 3-phase inverters >3.6kVA
- Suitable for complex load
- Surge power capability
- Industrial grade components
- Compact and robust design
- 3-phase output: Unsymmetrical load permissible, modular system with interchangeable inverters
