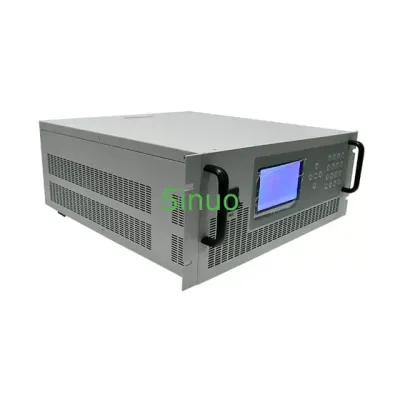

Sinuo - Model SNP-CCS1000 - AC Constant Current Source for High Frequency Pulse Output

SHARE
The AC constant current source utilizes SPWM (Sine Pulse Width Modulation) high-frequency pulse width modulation. With IGBT technology, it can accurately modulate both the output current and frequency. This product is characterized by its rapid response speed, high accuracy in maintaining constant current, and long-term stable operation. It effectively mitigates current variations due to grid voltage fluctuations, loop resistance changes, or internal resistance changes, remaining unaffected by human factors. It is compact, efficient, and offers a higher reliability and lower maintenance cost compared to traditional voltage regulators. This equipment is primarily used for testing and application of thermal effects caused by current in various products, including circuit breakers, fuses, thermal relays, magnetic starters, and transformers. The device's technical specifications include single-phase 127V ±10% input voltage, adjustable frequency within 47-63 Hz, and an adjustable current output range from 0 to 100A. It features an LED display for voltage, current, frequency, and power wattage, along with several protection modes for over current, temperature, load, and short circuits.
Most popular related searches
circuit breaker fuse
voltage regulation
voltage regulating
voltage fluctuation
voltage regulator
circuit breaker
electrical testing system
electrical equipment
load current
transformer testing

Place of Origin: China

Brand Name: Sinuo

Certification: Calibration Certificate (Cost Additional)

Model Number: SNP-CCS1000

Output Current: 0-100A

Output Voltage: AC 5V

Power Capacity: 500V

Input Voltage: 127 V±10 %

Input Frequency: 47 Hz ~ 63 Hz

Output Frequency: 47 Hz ~ 63 Hz

Voltage Resolution: 0.1 V

Frequency Regulation: 0.01 %

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Carton

Delivery Time: 30 Days

Payment Terms: T/T

Supply Ability: 50 sets per month

High Light: SPWM AC Constant Current Source, 100A AC Constant Current Source

The AC constant current source adopts SPWM high frequency pulse width pulse width modulation, IGBT realizes the output, can modulate the output current and frequency, has a fast response speed, high constant current accuracy, and long-term stable operation. And it can overcome current changes caused by grid voltage fluctuations, loop resistance changes, and product internal resistance changes, without being affected by human factors; small size, high efficiency, reliability and maintenance costs have obvious advantages over traditional voltage regulators; mainly used for testing and application of current thermal effects of specific products, such as circuit breakers, fuses, thermal relays, magnetic starters and other protective switches and various types of transformers where thermal effects testing applied such as rated current, operating current, short-circuit current, etc.

  1. Constant current, constant current adjustment range: 0-max. value continuous adjustment.
  2. Constant pressure, constant pressure adjustment range: 0- max. value continuous adjustment.
  3. Frequency conversion, frequency adjustment range: 47Hz-63Hz adjustable, fixed gears 50Hz, 60Hz, 100Hz, 120Hz.
  4. When using constant current and constant voltage, it can be automatically cross-converted to maintain both control and protection characteristics.
  5. Provide measurement of root mean square voltage, root mean square current, active power, frequency, etc.
  6. Protection mode: over voltage, over current, overload, short circuit, current limit, etc.
  7. Input and output are isolated.
