Wall Industries, Inc. - Model PSEOCH05 -AC/DC ITE Power Modules

SHARE
The PSEOCH05 series by Wall Industries, Inc. encompasses powerful and compact AC/DC ITE power modules that deliver up to 5.04 watts. These single output modules boast a universal input range of 90 to 305 volts AC and integrated I/O isolation rated at 4000 volts AC. With inherent protections against short circuits, overvoltage, and overpower conditions, the PSEOCH05 series ensures robust performance and safety, aligning with standards such as IEC/EN 60335-1, UL/IEC/EN 62368-1, IEC/EN 60950, and IEC/EN 61558-2-16. Additionally, it offers electromagnetic compatibility (EMC) without needing extra components, affirming its utility across diverse applications where efficient power conversion is crucial. The modules' compact design facilitates easy integration into space-limited environments.
Most popular related searches
electromagnetic compatibility
electric power
electrical power
industrial power
overvoltage

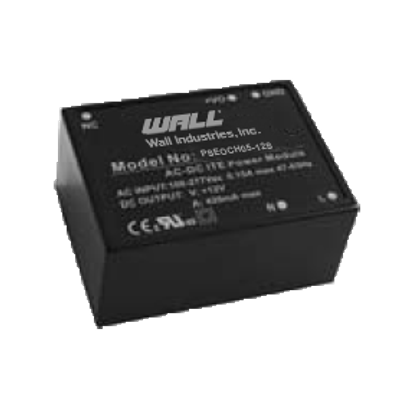

The PSEOCH05 series of AC/DC ITE power modules offers up to 5.04 watts of output power in a very compact 1.46” x 1.08” x 0.69” package. This series consists of single output models, each with a universal input range of 90~305VAC and I/O isolation of 4000VAC. Additionally, this series offers protection against short circuit, over voltage, and over power conditions and it meets IEC/EN 60335-1, UL/IEC/EN 62368-1, IEC/EN 60950, and IEC/EN 61558-2-16 safety approvals. The PSEOCH05 series is also EMC compliant without any additional external components.



  • Universal Input Range of 90~305VAC or 127~430VDC
  • I/O Isolation 4000VAC
  • EMC Compliant without External Components
  • Short Circuit, Over Voltage, and Over Power Protection
  • Compact Size
  • Meets IEC/EN 60335-1, UL/IEC/EN 62368-1, IEC/EN 60950, and IEC/EN 61558-2-16 Safety Approvals

Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~305
Input Frequency: 47 to 440Hz
Output
Output Voltage: 3.3, 5, 12, 24
Voltage Accuracy: ±2%
Output Current: 210mA, 420mA, 1000mA, 1515mA
Output Power (Watts): 5, 5.04
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Zener Diode Clamp
General
Efficiency: Up to 83%
Isolation: Input-Output: 4000VAC
Environmental
Operating Temperature: -40 to 70°C
Storage Temperature: -40 to 70°C
Physical
Weight: 0.85oz (24g)
Dimensions: 1.46in x 1.08in x 0.69in (37mm x 27.5mm x 17.5mm)
Case Material: Plastic Resin (Flammability to UL 94V-0)
Notes & safety
Notes: 1. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor.
2. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: IEC/EN 60335-1, UL/IEC/EN 62368-1, IEC/EN 60950, and IEC/EN 61558-2-16
