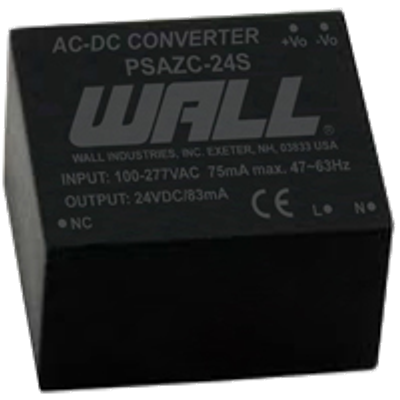

Wall Industries, Inc. - Model PSAZC -AC/DC PCB Mountable Power Supplies

SHARE
The PSAZC series is a collection of AC/DC power supplies engineered for PCB mounting, delivering 2 watts of output power housed within a compact 1.12” x 1.02” x 0.67” casing. This product series features models with single output voltages of 3.3V, 5V, 12V, 15V, and 24V. They support a universal input voltage range from 90-305VAC (equivalent to 120-430VDC), ensuring compatibility with various power systems. Key features include a 3000VAC input-output isolation for secure operations, a wide operating temperature scope from -40°C to +80°C, and protective mechanisms against over power and short circuits. Conforming to RoHS standards, these power supplies also carry UL/cUL, CE, and pending CB safety approvals, making them suitable for diverse industrial applications. The encapsulated design of the PSAZC series offers reliability and safety, ensuring stable performance under challenging environmental conditions.
Most popular related searches
AC-DC power supply
DC power supply
desktop power supply
power engineering

The PSAZC series of AC/DC power supplies provides 2 watts of output power in a 1.12” x 1.02” x 0.67” encapsulated PCB mountable package. This series consists of 3.3,V 5V, 12V, 15V, and 24V single output models with a universal input range of 90-305VAC (120-430VDC). Some features include 3000VAC I/O isolation, -40°C to +80°C operating temperature range, and over power and short circuit protection. All models are RoHS compliant and have UL/cUL, CE, and CB (pending) safety approvals.



  • RoHS Compliant
  • Isolation Class II
  • 3000VAC I/O Isolation
  • 2 Watts Output Power
  • Fully Encapsulated Plastic Case
  • < 0.3W No Load Input Power
  • 3.3V, 5V, 12V, 15V, and 24V Single Output Models
  • PCB Mountable Switching Power Supply
  • -40°C to +80°C Operating Temperature Range
  • Universal Input Voltage Range: 90-305VAC (120-430VDC)
  • Short Circuit and Over Voltage Protection
  • UL/cUL, CE, and CB Safety Approvals

Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~305
Input Frequency: 47 - 63Hz
Output
Output Voltage: 3.3, 5, 9, 12, 15, 24
Voltage Accuracy: ±6%
Output Current: 600mA, 400mA, 222mA, 167mA, 133mA, 83mA
Output Power (Watts): 2
Short Circuit Protection: Hiccup Mode, Indefinite (Automatic Recovery)
General
Efficiency: Up to 73%
Isolation: 3000VAC
Environmental
Operating Temperature: -40 to 80°C
Storage Temperature: -40 to 85°C
Physical
Weight: TBD
Dimensions: 1.12" x 1.02" x 0.67" (28.5 x 25.8 x 17.0 mm)
Case Material: Plastic Resin with Fiberglass
Notes & safety
Notes: 1. This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL, CE, CB
RoHS Compliance: Yes
