MCB Electronics (M.C.B. Srl)

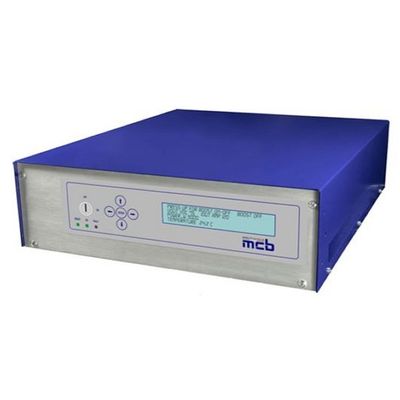

MCB - Model PS-01-V25-A40 -AC/DC Power-Spin 1kW
Part Number : PS-01-V25-A40. Power : 1 kW. Transformer : Isolation Transformer. Full Load Efficiency : > 95%.
Most popular related searches
DC power supply
transformer isolation
isolation transformer
desktop power supply
power transformer
voltage stabilization
voltage stabilizer
- ELECTRICAL SPECIFICATIONS
- AC Input (only one selectable) : Any 1-phase AC mains
- AC Input Connection : In accordance with the customer request
- DC Output Voltage : 1 - 25 V
- DC Output Current : 1 - 40 A
- Ripple : < 1%
- Load Regulation [Dynamic Variation] : < 2%
- Regulation Time Response to the variation of Load or Line Voltage : < 100 ms
- Stability of the Output Voltage [Static Variation] : < 0.5%
- Transient Suppression Circuit : Yes - to avoid release of energy back into the circuit when the load gets switched off
- Power Supply Short Circuit Protection : Yes - Magnetic Switch, Diode, Surge Arrester and Varistor
- Inrush Current : Setup through the control panel: <150% of the current value for 6secs
- CONTROL PANEL
- Regulation System : Command Buttons
- Display : LCD Display 4 x 40 characters
- Voltage Resolution : ± 0.1 V
- Current Resolution : ± 1.0 A
