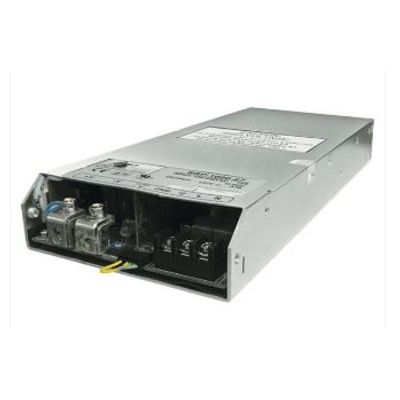

Technology Dynamics - Model TDRSP-1000 Series - AC-DC Switching Power Supply, 1000 Watts
The TD RSP-1000 Series is a high-power, 1U form factor, AC-DC switching power supply capable of delivering up to 1000 watts. It includes standard features such as Power Factor Correction and Forced Current Share, designed for parallel and redundant operations. It caters to a range of output voltages including 12V, 15V, 24V, 28V, and 48V, and is available in both standalone and hot-swap configurations. With a universal input range of 90-264VAC and efficiency levels between 83% to 90%, this power supply is adaptable for various applications. It meets EN 61000 standards for harmonic control and features protections against overcurrent, overvoltage, and overheating. The cooling is managed via an internal ball-bearing DC fan, with operating temperatures ranging from -20°C to +50°C. Designed for reliability, it supports non-condensing environments and withstands vibrations up to 2G and shock loads up to 20G.
The TD RSP-1000 Series AC-DC switching power supply is a 1U, high power, 1000 Watt AC-DC switching power supply. Standard features include Power Factor Correction and Forced Current Share for Parallel & Redundant operations. These AC-DC switching power supplies are available as a stand alone “COTS” versions with 12 Volt, 15 Volt, 24 Volt, 28 Volt and 48 Volt outputs. This unit is also available in a hot swap power supply version. Most models in stock for immediate delivery.
- Universal AC Input / Full Range
- Active PFC
- Built In DC Fan for Cooling
- Current Share Function
- DC Good Signal
- Remote On/Off & Remote Sense Functions
- 5V / 0.5A Auxiliary Output
INPUT SPECIFICATIONS
- Input: Universal AC Input Range 90-264VAC/127-370VDC
- Input Frequency: 47-63Hz
- Inrush Current: 25A max at 115VAC/40A at 230 VAC (cold start)
- Input Current: 12A max @ 115VAC 6A max @ 230VAC
- Efficiency: 83-90% typical (depending on output model)
- Hold-up time: 16ms at full load (minimum)
- Leakage Current: <2.0mA maximum @ 240 VAC
- Harmonics: EN 61000-3-2, -3 Class D Compliant (0.99 PF Typical)
OUTPUT SPECIFICATIONS
- Adjustment Range: ±10% (minimum)
- Minimum Load: none
- Regulation: Line ±0.5% Load ±0.5%
- Ripple/Noise: 150mV peak to peak maximum (20 MHz)
- Set Point Accuracy: ±1%(except 5V=±2%) (maximum)
- Output voltage adj: ±10% minimum
- Overcurrent Protection: 105-125% automatic recovery Constant Current
- Overlvoltage Protection: 115-140% of V1 nominal
- Overtemperature Protection: Heatsink Temp. 90°C ± 5°C Auto Recovery
ENVIRONMENTAL SPECIFICATIONS
- Operating Temperature: -20°C to +50°C. Derate to 50% at +70°C
- Storage Temperature: -40°C to +85°C max 95% Relative Humidity
- Cooling: Internal ball bearing DC fan
- Humidity: 20-90% RH non condensing
- Vibration: 10-500Hz, 2G 10min/1cycle for 60 min (3 axes)
- Shock: 20G Peak Acceleration
- Weight: Approx: 4 LBS
- Size: 11.61” x 5” x 1.61”
