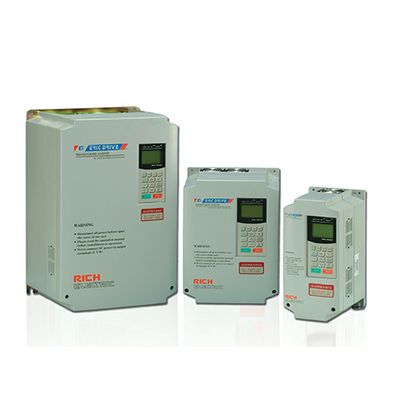

Rich Electric - Model Super N -AC Inverter Motor Drive

SHARE

AC Inverter Motor Drive is the comprehensive flux vector control AC inverter. AC Inverter Motor Drive can be used in elevator, lift application. There are four control patterns: Standard V/F control, V/F control with PG feedback, Sensorless flux vector control and vector control with PG feedback. EI-Super provides the servo-like precision machinery to multiple types of motor drives. The capacity of AC Inverter Motor Drive is up to 900kW. Large power can be custom-designed in the cabinet protection.

Most popular related searches
AC drive
inverter
induction motor
power inverter
inverter power

220V Class (3-Phase Input) 0.75kW~75kW
440V Class (3-Phase Input) 0.75kW~900kW

Smooth operation, precise control and powerful functionality.
AC Inverter Motor Drive is a general-purpose inverter with flux vector control. It directly controls the current or torque in an AC induction motor. AC Inverter Motor Drive is suitable for a wide variety of applications.

AC Inverter Motor Drive provides smooth start-up at low speeds (1% of rated speed) and precise operation. Its auto-tuning function enables high performance tuning of all induction motors

AC inverter motor drive combines four control methods
open loop vector
flux vector
V/F control with PG feedback
V/F control

From precision machinery to multiple motor drives, El Super N proves to be the ultimate drive for all applications. Features
32bit DSP microprocessor configuration

  • magnetic field oriented flux vector contro
  • auto-tune ability
  • available for speed-type servo controller while PG feedback added
  • RS-232/RS-485 serial communication port
  • RS232/TCP-IP interface card
  • capacities from 1HP – 400 HP
  • optional DC reactor available (for reducing harmonic interference from the power supply)
  • multi-language large screen LCD displays the drive status in six languages and a parameter copy mode function.

Any type of machine starts smoothly at slow speeds.
EI-Super N features full-scale flux vector current control that directly controls motor torque based on present control theory utilising a magnetic flux observer and neuro-control.

It features full torque control even at zero speed when PG option is added.

Precise control over a wide speed range.
EI-Super N features highly precise operation throughout the motor’s entire speed range, even under fluctuating load conditions.

Four controls in one device; the ultimate device for all applications.
Four control methods are included:

  • Standard V/F control
  • V/F control with PG feedback
  • Sensorless flux vector control
  • Flux vector current control with PG feedback

Simply select the parameters, EI-Super N can be applied to a wide range of applications from servo-like precision machinery to multiple motor drives.

Factory presets default to sensorless vector control type, but it can be configured to the V/F control mode for applications requiring multiple motors on one device, or set to flux vector current control mode (with PG) for hughly precise vector operation. (PG-B interface card is optional)

Note: at low speed, high torque and continuous operation, a forced cooling special motor must be used

Applications

  • Booster Oil Pumping Station
  • Punch Press
  • Tram Line in Mining Operation
  • Surface Winder
  • Application requirements; V/Hz (2%), sensorless vector (0.1%), or flux vector control (0.01% with motor-mounted encoder and drive-mounted PG-X2 card required).
