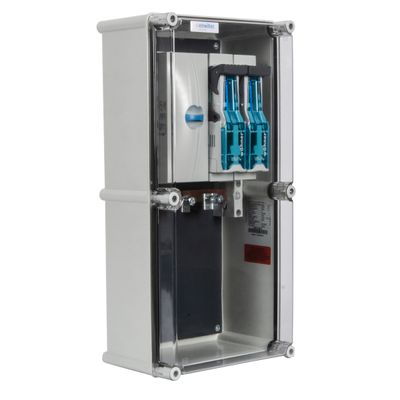

enwitec - Model 10015380 -AC Junction Box 3AC-400-TNC-2-NH000-X-X-PES-1.0

Article Number: 10015380
net form: TN-C
number of inverters: 2
overvoltage protection: No
protection class: NH
Max. (Ue): 400 V
operating frequency (fn): 50 Hz
rated current (In): 246 A
connection-IN: max. 50mm²
connection-OUT: max. 120mm²
Installation type: Wandmontage
Case: Schaltschrank IP65
Measures: 270 x 540 x 171 mm

Assembly instructions:

Fuse type: NH000 – check with your inverter; Fuses not part of delivery content

CLICK HERE FOR SUITABLE FUSES

Pilot drilling for bolted joints: M63, M50 (1x 34mm – 48mm, 2x 21mm – 35mm); bolted joints not part of delivery content

Infeed inverter:

• L1-L3 direct on NH000 separator frame clamp 2,5-50mm²
• PEN conductor connection clamp on rail system 1,5-35mm²

Output terminal:

• L1-L3 on rail adapter mit terminal plate
  10-120mm² finely stranded with end sleeve
  16-120mm² finely stranded, directly connected
  16-150mm² stranded
• PEN conductor connection clamp on rail system 16-120mm²

Note

Matchcode: 3AC-400-TNC-2-NH000-X-X-PES-1.0

HS-Code: 85371098
