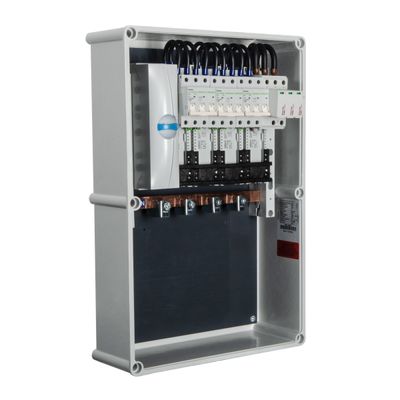

enwitec - Model 10015594 -AC Junction Box 3AC-400-TNC-3-T50A-X-BC-PES-1.0

Article Number: 10015594
net form: TN-C
number of inverters: 3
overvoltage protection: Class I+II/B+C
protection class: NH
Max. (Ue): 400 V
operating frequency (fn): 50 Hz
rated current (In): 176 A
connection-IN: max. 35mm²
connection-OUT: max. 50mm²
Installation type: Wandmontage
Case: Schaltschrank IP65
Measures: 360 x 540 x 171 mm

Assembly instructions:

Fuse type: NH000 – check with your inverter; Fuses not part of delivery content

CLICK HERE FOR SUITABLE FUSES

Pilot drilling for bolted joints: M63, M50, M20 (1x 34mm – 48mm, 5x 21mm – 35mm, 1x 6mm – 13mm); bolted joints not part of delivery content

Infeed inverter:

• L1-L3 direct on circuit breaker max.35mm²
• PEN conductor connector clamp on rail system 1,5-35mm²

Output terminal:

• L1-L3 on rail adapter with terminal plate
  6-50mm² finely stranded or with end sleeve
• PEN conductor connection clamp on rail system 16-70mm²

Note

Matchcode: 3AC-400-TNC-3-T50A-X-BC-PES-1.0

HS-Code: 85371098
