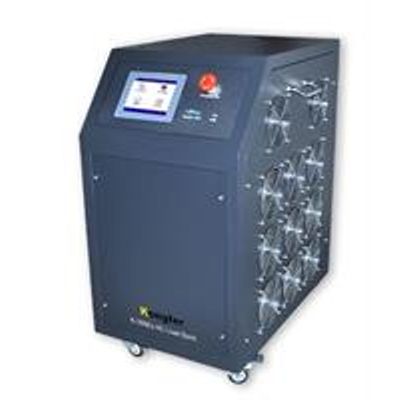

Kongter - Model K-3980J - AC Load Banks

Kongter - Model K-3980J -AC Load Banks

FromKongter Test & Measurement Co., Limited

K-3980J AC load bank contains many different customized models containing following features:

Most popular related searches

Compact and easy to operate
Reliable load element
Over-volt and temperature protection
0-40kw continuous adjustable
Customized units available upon request

For testing of battery real capacity, Kongter also offers a whole series of K-3980 Battery Load Bank which is widely applied in telecom, power utility, data center, forklift batteries, and so on.

High rate testing for voltage, current and transient voltage waveform for generator and UPS units
Big TFT touch screen, easy operation and vivid display of testing data and waveform
Power continuously adjustable from 0 to 40kW with current from 0 to 60A
Discharge time customized as 0-99 hours with resolution of 1 minute
Can set different current, end-up time, discharge power and voltage threshold (upper or lower limit)
Has emergency stop button
Auto stop discharge when three phase voltage is over high
Auto stop discharge when three phase voltage is over low.
Has over current short circuit protection
Warning and auto stop upon any fans failure

Note:
This is datasheet for 3 phase 40kw. More customized load bank models available upon request.

Kongter - Model K-3980J -AC Load Banks

Features

Unique Features

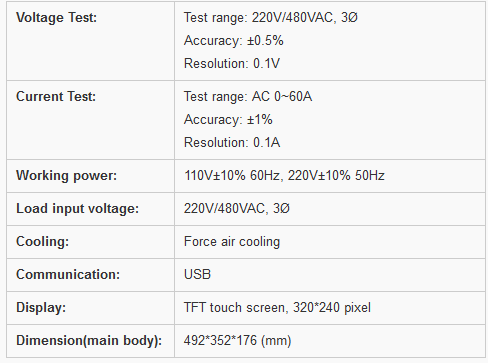

Specifications
