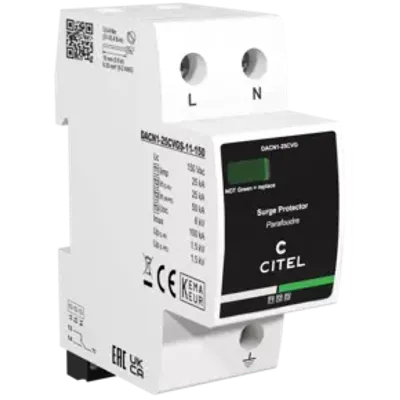

CITEL - Model DACN1-25CVGS-11-150 -AC Surge Protector for Single Phase Systems
The Type 1+2+3 AC surge protector is designed specifically for single phase systems, providing comprehensive protection against electrical surges caused by lightning strikes or industrial disturbances. This device effectively shields sensitive electronic equipment by limiting over-voltage brought on by these incidents, ensuring the reliability and longevity of connected appliances. The DACN1 series, including variants such as DACN1-25CVGS-11-150 and DACN1-25CVGS-31-385, offers scalability and adaptability for a variety of electrical environments. With operational application in both AC and DC systems, the surge protection device aligns with standards ensuring high performance in surge protection. Citel's range of surge protectors is primarily designed for industries requiring robust electrical safeguarding, facilitating optimal protection in both residential and commercial infrastructures.
- Technology : VG Technology (MOV+GSG)
- SPD configuration : Single phase
- Connection to Network : By screw terminals: 2.5-25mm² (35mm² rigid)
- Compact : Yes
- Format : Monobloc modular box
- Plugable : No
- Mounting : Symmetrical rail 35 mm (EN 60715)
- Housing material : Thermoplastic UL94 V-0
- Operating temperature : Tu -40/+85°C
- Protection rating : IP20
- Failsafe mode : Disconnection from AC network
- Disconnection indicator : 1 mechanical indicator - Red/Green
- Remote signaling of disconnection : Output on changeover contact
- Wiring for remote signaling : 1.5 mm² max.
- Max. Voltage/Current for remote signaling : 250 V / 0.5 A (AC) / 30 V / 3 A (DC)
- Weight : 0.285 kg
