ACCUOPT SparkView - Substation Hot Spot Monitoring System

SHARE

The SparkView Substation Hot Spot Monitoring System by ACCUOPT is designed to identify and monitor hot spots within switch-yards or substations. It utilizes a high-resolution thermal camera, available in configurations of 640x480 pixels or 384x288 pixels, to detect temperature variations at critical connection points. This system includes a visual camera with a 20x optical zoom to aid in manual inspection and identification of potential issues. Equipped with a pan and tilt system, SparkView provides comprehensive area coverage even under challenging weather conditions. The system is managed through Windows-based software that automates thermal image acquisition and report generation, ensuring continuous and efficient monitoring. Data is transmitted via a high-speed 1GBPS link to a control room where the software alerts operators to anomalies. The system facilitates reduced downtime and improved safety with preventive maintenance capabilities, saving time and manpower by automatically generating detailed reports and alerting staff to new hot spots.

Most popular related searches
substation monitoring
substation system
current transformer
electrical equipment
earthing connector
predictive maintenance
high voltage current
circuit breaker
power transformer
power network

High Resolution Thermal Imaging based automatic hot spot temperature monitoring and reporting system for predictive maintenance

Objective of Substation Monitoring
A Typical substation consists of several electrical equipment such as CT (Current Transformer), PT (Power Transformer), CB (Circuit Breakers), Surge or Lightning Arrester, Busbars, Earth Connectors, Potential Transformer etc. These components are connected together that form “joints”. Normally, over the period of time, these joints develop hot-spots due to the high voltages and currents passing through them which require timely and daily monitoring. These hot spots may cause breakdown of the sub station which may result in shutdown of plants which is dependent on power from the substation. It may also cause accidents. So, it is important to monitor “hot spots” in a substation regularly to prevent such breakdown or accidents.

Sparkview

ACCUOPT SparkView : Substation Hot Spot Monitoring System detects hot-spots in switch-yard or substation, prepares reports against every potential host-spots in “joints”, keep a record for analysis and displays them in control room.

Key Components of SparkView

One unit of SparkView Consists of the following equipment

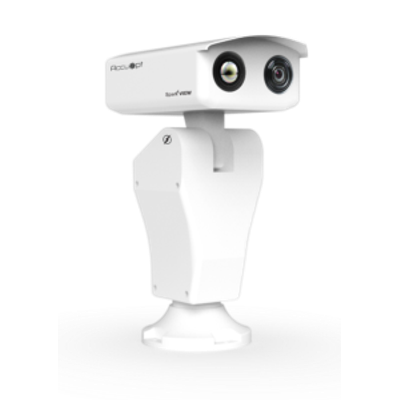

  1. ThermCAM-640/ThermCAM-384 : These are the high resolution ( 640X480 Pixels/384X288 Pixels ) thermal camera which is the core of the SparkView Substation Monitoring System. It uses a lens which is selected as per desired area to measure hot-spots in the switch-yard or substation.
  2. 2MP Visual Camera with 20x optical zoom : Visual Camera is used for better identification of the joints manually during the hot-spot location during installation from control room or during any manual inspection remotely from control room.
  3. PT-Drive with Enclosure : This is a PAN and TILT System which helps the SparkView cover more areas per unit. Its a weather proof industrial grade system designed to perform in harsh weather conditions.
  4. SparkView Software : This is an Windows Based Thermal Image Acquisition and processing software which detects hot-spot , generates reports automatically once or twice a day. The period can be configured. SparkView Software has many features which are useful for switchyard monitoring system.

Apart from above main components, a panel box that houses all power supplies, ( network equipment if any) are kept at the location near to the installation of the SparkView. Also, it is normally mounted on a rugged pole at approx. 45 degree angle to cover large area of the switch-yard or substation.

Normally, at least 1GBPS data link is required from the SparkView installation site to the control room where a Server Grade PC is located with SparkView Software. If continuous monitor is not needed, than multiple ( upto 8) units of SparkView can be connected to the same data link as well as the same PC.

  • Saves time and manpower
  • Improves safety of plant personals
  • Real-time and automatic Substation Monitoring System
  • Reduce breakdown with preventive maintenance
  • One unit can Covers large area/large number of probable hot-spots
  • Automatic Report Generation
  • Provides Both Thermal and Visual Image
  • Can cover large areas and large number of hot-spot or joints.
  • Automatic mailing of daily reports
  • Dashboard at Control Room for easy monitoring
  • Alarms for any new hot-spot detection as well as self -diagnostic feature
  • Ease of operation
  • Customized reports and software as per requirement
