Line Powered 100/115/208/230V or 277/347/480/600V. AC Demand and Consumption Measurement. The PowerBullet™ comes as a power or energy transducer designed for monitoring demand and consumption in residential, commercial and industrial applications. It is a line-powered, phase-to-phase unit with outputs compatible with the Voltage or Pulse inputs of most measurement systems. The transducer outputs are directly proportional to kW/kVA for demand and kWh/kVAh for consumption. It takes into account Power Factor and True RMS Values and includes built-in Arc Flash protection.
-
Most popular related searches
Applications
Applications
- Equipment Level Optimization - motors, compressed air and cooling compressors
- Branch Circuit Mixed Load Types - lighting and computer equipment
Power Demand Models (Voltage Outputs)
- kW and kVA – proportional voltage outputs (compatible with standard 5VDC Analog Inputs)
- PF (Cos phi) and kVAR for Energy Audits – Calculated from resultant data (compound line)
- Peak Demand – Resolution down to 1sec logging interval
Power Demand models are compatible with SmartReader 3 (single phase only) and SmartReader Plus 3 data loggers.
Energy Consumption Models (Pulse Outputs)
- kW and kWh – Pulse accumulation outputs (compatible with 5VDC Counter Inputs)
- Mixed and Balanced Load Types – Use where submetering does not exist
- Revenue Grade Measurement – High accuracy over 15min logging interval
(Energy Consumption models are compatible with SmartReader 9 and SmartReader Plus 9 data loggers.)

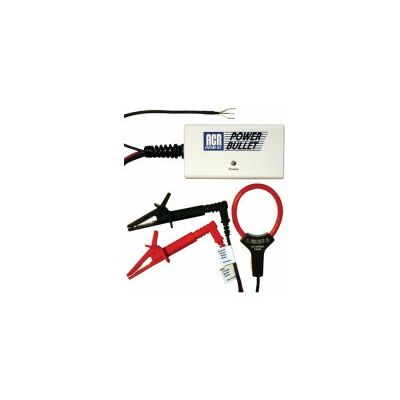

The PowerBullet uses a miniature Rogowski flexible split-core current transducer which makes it small enough to fit inside disconnect enclosures, breaker panels or distribution boxes. Wide Mouth Alligator clips make it easy to connect to the line voltage terminals without tools.
General Specifications
Size: 140 x 57 x 57 mm (5.5 x 2.3 x 2.3 in)
Weight: 300 grams (11.2 ounces)
Case Material: ABS Plastic UL94V-0
Fuse: 0.5A Fast-Acting 100kAAC
Resolution: 20W, 20VA or 1pulse/Wh, VAh
Safety Rating: 300V Cat IV or 600V Cat III
Voltage Range: 90-300VAC or 250-630VAC
Current Range: 2-500A (at 600VAC)
Probe OD: 51mm (2.0in) Nominal
Measurement Mode: Delta Sigma / True RMS
Operating Limits: 10°C to 55°C (14°F to 131°F)
Power Consumption: 2.5W 40VA
Software Version: TrendReader 2.39 or Later
Environmental: 10 to 90% RH Non-condensing
Maximum Altitude: 2000m (6560ft)
Pollution Degree: 2 (Non-conductive Dust)
Channel Accuracy
Measurement: ±0.1% (Before & After Ratio)
Transducer: ±0.5% (±3% Position)
System: ±1% (±4.5% Position)
Demand Output: 98mV FS into 400Ω load, 4.99V FS into 10MΩ load
Consumption Output: 5V 6mS Pulse (14% Demand Ripple)
