Acrobat - Winches/Reels

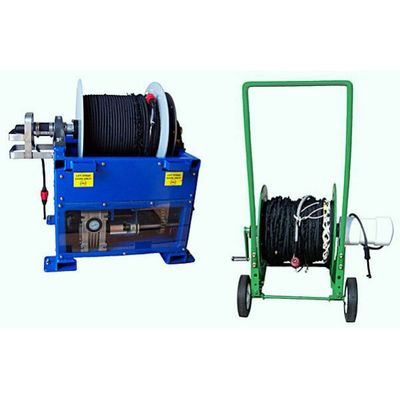

Depending on budget constraints and the type of towing activity, the use of a Reel with sliprings or a winch may be needed. The reel provides a good way to store and use the tow cable when power, boat size, and limited cable length deployed make the use of a winch problematic. Electric winches are justified when cable deployed exceeds 50m and payloads are large and heavy.
Most popular related searches
Typical specifications for an electric winch used for Acrobat towing
Construction
All aluminum construction, vinyl etch primer and enamel top coat
- Helical worm drive gearbox, self contained
- Power in/power out design
- Hand-held directional/on/off control
- Hollow stub shaft to mount slip ring
- 8 conductor slip ring included
- Access cover in drum barrel for cable installation
- ½ HP to 1.5 HP permanent magnet motor powered by 90/180
- VDC (1.5 HP at 180 VDC only) with variable-speed drive
- controller powered by 110/220 VAC
- Larger drum capacity
- Integration of cable on winch
- Manual or powered level wind for cable
Performance
With 0.5 hp DC motor using 110 or 220VAC single phase supply
Unit weight: approximately 130 lb. without cable
- Bare drum: 139 lb @ 93 ft/min
- Mid drum: 104 lb @ 125 ft/min
- Full drum: 80 lb @ 163 ft/min
Same as above with 0.75 hp motor, as follows:
Unit weight: approximately 135 lb. without cable
- Bare drum: 208 lb @ 93 ft/min
- Mid drum: 156 lb @ 125 ft/min
- Full drum: 120 lb @ 163 ft/min
Same as above with 1.0 hp motor, as follows:
Unit weight: approximately 140 lb. without cable
- Bare drum: 282 lb @ 93 ft/min
- Mid drum: 211 lb @ 125 ft/min
- Full drum: 162 lb @ 163 ft/min
