PrismaSeT - Model P - Active Low-Voltage Switchboards
Digitally connected switchboards for power distribution up to 4000A. Part of Set Series - PrismaSeT Active is the newest generation of low-voltage switchboards, natively cloud connected. This revolutionary approach lets panel builders and electrical contractors give a voice to power distribution across commericial buildings. Commissioning is made faster, before smart alarms help optimize maintenance and improve uptime.
Electrical contractors and panel builders
Scan the QR code and become irreplaceable
Ten minutes is all it takes. If you see a blinking orange light on your PrismaSeT P Active as you’re finishing your installation, don’t worry – it’s normal.
Scan the QR code on the front face of the panel with your smartphone and follow a few easy steps. Now both you and your customer are connected to their installation.
Leverage connectivity to its full extent
With built-in connectivity, you can become your customers’ preferred partner, easily offering maintenance services and upgrades to their equipment. It’s a great opportunity to start building new and long-lasting relationships.
Consulting engineers and facility managers
Simplifying the electrical distribution experience
PrismaSeT P Active will change the way you perceive and interact with your electrical distribution system.
It will maximize your productivity and efficiency, giving you the peace of mind you crave.
Simplify building management: plug-and-play solution, with only relevant and simple data tailored to each building.
Reference Architecture - simple digital solution for small office buildings
Explore how PrismaSeT Active can be easily integrated, as a simple digital Solution for small office buildings.

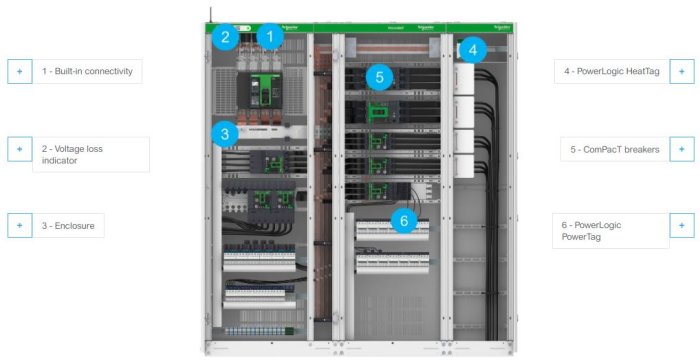

- Cubicles for electrical switchboards up to 4000 A
- High-performance distribution systems with Linergy busbars and quick connectors
- Complete set of tested and IEC 61439-1&2 compliant modular functional units and low-voltage electrical distribution switchboards
Specification:
- Low-voltage switchboards, Icw 100kA rms/1s, IP30, IP31, IP55, IK10
- Distribution system: horizontal and vertical busbars in a lateral compartment or at the rear of the cubicles
- Cubicles with plain or glass door tested up to 2.5g according to the IEC 60068-3-3 standard ensure that the switchboard will keep on operating as intended, even during severe earthquake conditions (up to 7 on the Richter scale)
- Metal frames and panels: steel metal sheet with cataphoresis treatment with hot-polymerized polyester epoxy powder coating (color RAL9003)
Dimensions:
- Height: 2000 mm
- Width – 4 options: 800 mm (for functional units with vertical busbars), 650 mm (for functional units), 400 mm (for functional units or cable ducts), 300 mm (for cable ducts)
- Depth – 2 options: 400 mm, 600 mm
