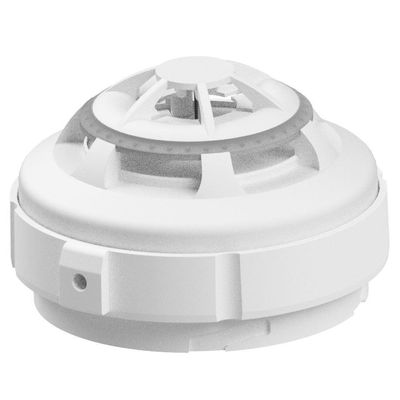

Consilium - Model CN-H/CS 84C HEAT IP-ADAPT IP67 -Addressable Heat Detector

CN-H/CS is an analogue addressable heat detector molded together with base adapter IP-ADAPT to fulfill IP67.

CN-H/CS is designed to give early warning for the presence of heat in the supervised area, and conforms to the CS temperature class (fixed 84°C). The detector is also available in  temperature class A1R (fixed 54°C + rate of rise function according to EN54-5), see separate part no. in Related products.

CN-H/CS is equipped with OMNIVIEW 360° LED indicator giving a clear, full 360° visibility of the red alarm indication. The detector can be placed in harsh
environments when mounted on IP BASE, see separate part no. in Related products.

The technical detector address is set with programming tool CN ADDRESS PROGRAMMER, see separate part no. in Related products. Valid addresses are 1-254.

CN-H/CS is equipped with an output for remote indication.
