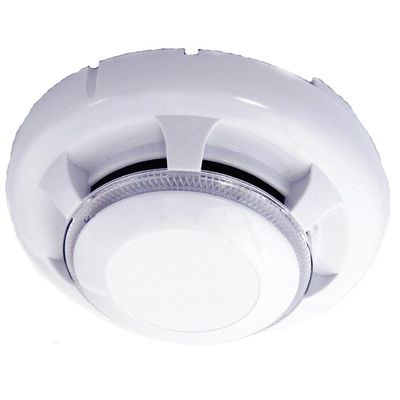

Consilium - Model CN-DPH-CS -Addressable Optical Smoke and Heat Detector

CN-DPH-CS is an analogue addressable smoke and heat detector with a dual wavelength optical chamber. Two light sources with different wavelengths are used, giving the detector a stable reaction to different kinds of smoke and making it insensitive to unwanted alarms caused by e.g. water steam.

CN-DPH-CS is equipped with Omniview™ 360° LED indicator giving a clear, full 360° visibility of  the red alarm indication. The technical detector address is set with a special programming tool. Valid addresses are 1-254.

CN-DPH-CS is equipped with an output for remote indication.

For detailed information about appropriate systems for the detector, see separate document  “Compatibility of Loop Units/System”
