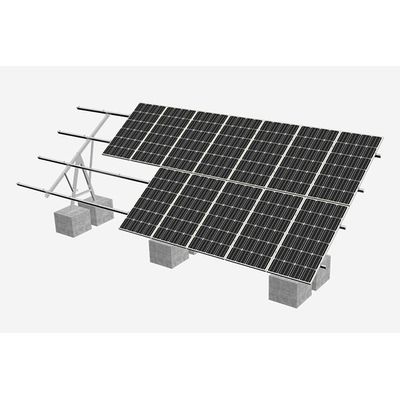

MRac - Adjustable Solar Panel Tilt Bracket for Ground-Mount PV Racking Systems
The MRac Adjustable Solar Panel Tilt Bracket is engineered for large commercial and utility power plant installations, providing strength and stability through its carbon steel construction, renowned for corrosion resistance. Its manual adjustment capability allows for optimizing panel angles, enhancing power generation efficiency and return on investment. This versatility adapts to various ground environments, ensuring system robustness and ease of installation with minimal components needed on-site. Its compatibility with diverse photovoltaic modules adds to its flexibility, supported by a professional structural design that ensures the overall stability and strength of the installation. Additional features include pre-assembled bracket heights and a comprehensive service package offering a 10-year warranty, installation guides, and ongoing support, reflecting the system's adaptability to client-specific project requirements.Adaptable to different environments
Suitable for different ground environments and higher power generation efficiency.
Professional structural design
Ensure the overall stability and strength of the system, and bracket height pre-assembly; the site only needs fasteners to fix the splicing to complete the installation.
Adjustable angle design
The racking system can be manually adjusted to the required angle, allowing for higher power generation efficiency and greater returns.
Compatible with different PV modules
Free and flexible to support various types of photovoltaic modules.
Type: Ground
Bottom Support: Cement foundation
Installation Angle: 10-40°
Wind Load: 40m/s
Snow Load: 0.8KN/㎡
Height From the Ground: 1000+mm
Panel Framing: framed, frameless
Panel Orientation: horizontal, vertical
Design Standards: AS/NZS 1170, DIN 1055, JIS C8955:2017,
: International Building Code: IBC 2009,
: California Building Code: CBC 2010;
Bracket Material: Q235B (hot-dip galvanized)
Fastener Material: Zinc-nickel alloy & stainless steel SUS304
Parts Material: Q235B (hot-dip galvanized)
Bracket Color: Natural silver or colored according to customer requirements
Warranty: 10 years
