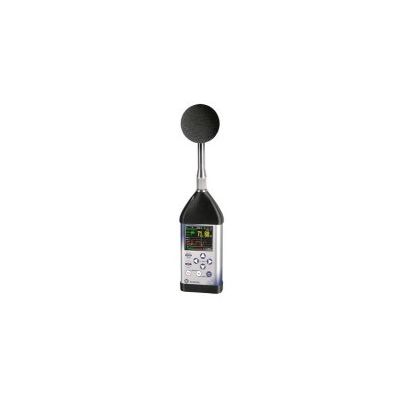

SVAN - Model 979 - Advanced and Powerful Sound Level Meter and Analyzer
SVAN 979 is a powerful and advanced real-time sound and vibration analyzer for use in acoustical engineering, high-priority monitoring, and safety applications. The SVAN 979 has features and sensitivity commonly found precision laboratory equipment but in a portable sound and vibration meter and analyzer.
- Type 1 IEC 61672:2002 sound level measurements
- General vibration measurements (acceleration, velocity and displacement)
- Three parallel independent profiles
- 1/1, 1/3 octave real-time analysis
- 1/6 or 1/12 octave real-time analysis
- FFT real-time analysis 1600 lines in up to 22.4 kHz band
- Time-domain signal recording
- Advanced data logger including spectra’s logging and Audio Events Recording
- Reverberation Time measurements
- Pure tone detection
- Acoustic loudness measurements
- Advanced trigger and alarm functions
- User programmable Band-Pass Filters
- Windscreen and extension cable auto detection
- Built-in self vibration measurements
- Micro SD card for mass data memory
- USB 1.1 Host interface providing remote communication by GPRS
- LAN & WLAN or GPS time synchronisation and many other functional extensions
- USB 1.1 Client interface (real-time PC “front end”)
- Bluetooth, RS 232 and IrDA interfaces
- Super contrast (10000:1) colour OLED display
- Built-in signal generator
- All weather microphone protection SA 205
- Hand held, light weight and robust case
- Easy to use
SVAN 979 can record a raw audio data to micro SD flash card in WAV format, so sources of noise can be played back and identified by listening (Time-domain SignalRecording). The Audio Events Recording function is very useful in measurements requiring unattended monitoring.
Moreover, the SVAN 979 is able to perform advanced measurement techniques like MLS, TDS etc. thanks to built-in sophisticated signal generator.
SVAN 979 is designed for easy communication with computers by built-in ports USB client and USB host. In practice it means full remote control over the instrument from the PC. Fast USB 1.1 interface (12 MHz) creates real-time link for the PC "front-end" application of the SVAN 979 instrument .
SvanPC+_VR viewer software provides easy local communication with PC, data transfer and instrument`s settings configuration. This already advanced and user-friendly application can optionally be extended by SvanPC+_RC remote communication module (GPRS, LAN or WLAN transmission) and SvanPC+_EV software for environmental monitoring data processing.
These exceptional features make SVAN 979 the leading product for measurements in field (environmental monitoring). SVAN 979 is powered from standard or rechargeable AA batteries. The powering of the instrument from the External DC power source or USB interface is also provided. Robust and light weight design accomplishe the exceptional features of this new generation instrument.
SVAN 979 is a powerful and advanced single channel instrument for acoustic and vibration measurements. The list of the instrument features includes:
- High accuracy sound and vibration measurements
- Powerful frequency analysis package
- Time-domain (WAV) and Audio Events recording to Micro SD card
- Very high dynamic measurement range
- Extremely flat frequency response (digitally compensated)
- Range of interfaces (USB, Bluetooth, IrDA, RS232 and more)
- USB Host port providing very flexible extension capabilities
- GPRS and WLAN communication (USB Host port) ready
- GPS time synchronisation
- Super contrast color display
- Built-in signal generator
- Automatic windscreen and extension cable detection
- All weather microphone protection with Community and Airport response.
SVAN 979 can record raw audio data to micro SD flash memory in WAV format allowing for play-back and identification of noise sources with the Time-domain signal recording. This feature is very useful in measurements requiring unattended monitoring.
SVAN 979 is able to perform advanced measurement techniques like MLS and TDS thanks to a built-in sophisticated signal generator. SVAN 979 is designed for easy communication with computers by built-in USB port and USB host allowing for full remote control over the instrument via PC.
SvanPC+_VR viewer software provides easy local communication with PC, data transfer and instrument’s settings configuration. This advanced and user-friendly application can optionally be extended by SvanPC+_RC remote communication module (GPRS, LAN or WLAN transmission) and SvanPC+_EM software for environmental monitoring data processing. These exceptional features make SVAN 979 the leading product for measurements in-field (environmental monitoring).
SVAN 979 is powered from standard or rechargeable AA batteries. Optionally the instrument can be powered from the External DC power or USB interface.
Robust and light weight, the SVAN 979 provides exceptional features in a new generation of instrument.
SVAN 979 is the most advanced and powerful single channel instrument for general acoustic and vibration measurements ever made. The list of the instrument outstanding features and functionalities includes:
- high accuracy sound and vibration measurements
- most powerful frequency analysis package
- time-domain (WAV) and Audio Events recording to Micro SD card
- very high dynamic measurement range
- extremely flat frequency response (digitally compensated)
- extremely flexible set of interfaces (USB, Bluetooth, IrDA, RS232 and more)
- USB Host port providing very flexible functional extensions capabilities
- firmware ready for GPRS and WLAN communication (USB Host port)
- GPS time synchronisation
- super contrast colour display
- built-in signal generator
- automatic windscreen and extension cable detection
- all weather microphone protection with Community and Airport response.
SVAN 979 can record a raw audio data to micro SD flash card in WAV format, so sources of noise can be played back and identified by listening (Time-domain SignalRecording). The Audio Events Recording function is very useful in measurements requiring unattended monitoring.
Moreover, instrument is able to perform advanced measurement techniques like MLS, TDS etc. thanks to built-in sophisticated signal generator.
SVAN 979 is designed for easy communication with computers by built-in ports USB client and USB host. In practice it means full remote control over the instrument from the PC. Fast USB 1.1 interface (12 MHz) creates real-time link for the PC "front-end" application of the SVAN 979 instrument .
SvanPC+_VR viewer software provides easy local communication with PC, data transfer and instrument`s settings configuration. This already advanced and user-friendly application can optionally be extended by SvanPC+_RC remote communication module (GPRS, LAN or WLAN transmission) and SvanPC+_EV software for environmental monitoring data processing.
These exceptional features make SVAN 979 the leading product for measurements in field (environmental monitoring). SVAN 979 is powered from standard or rechargeable AA batteries. The powering of the instrument from the External DC power source or USB interface is also provided. Robust and light weight design accomplishe the exceptional features of this new generation instrument.
SOUND LEVEL METER / ANALYSER
Standards: Class 1: IEC 61672-1:2002
Meter mode: SPL, Leq, SEL, Lden, Ltm3, Ltm5, Statistics - Ln (L1-L99), LMax, LMin, LPeak Simultaneous measurement in three profiles with independent set of filters and detectors
Analyzer:
Analyzer 1/1 or 1/3 octave1 real-time analysis
1/6 or 1/12 octave1 real-time analysis (option under development)
FFT 1 real-time analysis 1600 lines, up to 20.0 kHz band (option)
Loudness1 based on ISO 532B standard and Zwicker model (option)
Pure tone detection meeting ISO 1996-2 (Tonality1option)
Reverberation time analysis in 1/3 octave bands (RT 60 option)
User programmable second order band pass filters1 (option)
and more...
Weighting filters: A, C , Z, B, G
RMS Detector: Digital True RMS detector with Peak detection, resolution 0.1 dB,
Time Constants: Slow, Fast, Impulse
Microphone: GRAS 40AE, 50 mV/Pa, prepolarized 1/2" condenser microphone with SV 17 preamplifier
Measurement Range: 22 dBA RMS - 140 dBA Peak
Internal Noise Level: less than 12 dBA RMS
Frequency Range: 3.15 Hz - 20 kHz, with GRAS 40AE microphone
VIBRATION LEVEL METER / ANALYSER
Standards: ISO 10816-1
Meter mode: RMS, MAX, Peak, Peak-Peak
Simultaneous measurement in three profiles with independent set of filters and detectors
Analyzer:
- 1/1 or 1/3 octave1 real-time analysis
- 1/6 or 1/12 octave1 real-time analysis (option under development)
- FFT1 real-time analysis 1600 lines, up to 20.0 kHz band (option)
- RPM1 rotation speed measurement parallel to the vibration measurement (option)
- Advanced enveloping option dedicated for bearing diagnostics (option)
- User programmable second order band pass filters1 (option)
Filters: HP1, HP3, HP10, Vel1, Vel3, Vel10, VelMF, Dil1, Dil3, Dil10
RMS & RMQ Detectors: Digital True RMS detector with Peak detection, resolution 0.1 dB
Time constants: from 100 ms to 10 s
Accelerometer (option): DAny IEPE accelerometer
Measurement Range: Accelerometer dependent
Frequency Range: 0.5 Hz - 22.4 kHz (transducer dependent)
BASIC DATA
Input: Direct AC, Direct AC with 200 V polarisation, Direct DC or IEPE type with TEDS (LEMO 7-pin)
Dynamic Range: 115 dB
Frequency Range: 0.5 Hz - 22.4 kHz, sampling rate 48 kHz
Data logger1:
- Time-history logging with logging step down to 1 millisecond
- Time-domain signal recording and audio events recording function,
- Micro SD Card 8 GB (included), USB Memory Stick (not included)
Signal Generator: Sine, Sweep, White noise, Pink noise etc. (option)

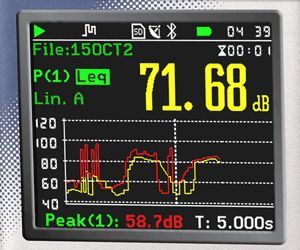

Display: Super contrast (10000:1) OLED 2.4" color display (320 x 240 pixels)
Memory: 32 MB non-volatile flash type, micro SD card 8 GB (included) or external USB Memory Stick (not included)
Interfaces: USB 1.1 Client, USB 1.1 Host, Bluetooth, RS 232 (with SV 55 option), IrDA (option)
Extended I/O - AC output (1 V Peak) or Digital Input/Output (Trigger Pulse)
Power supply: Four NiMH rechargeable batteries (option): operation time > 16 h (4.8V / 2.6 Ah)2
Four AA batteries (alkaline): operation time > 12 h (6.0V / 1.6 Ah)2
SA 17A external battery pack: operation time > 24 h (option)2
External power supply: 6 V/500 mA DC - 15 V/ 250 mA DC
USB interface: 500 mA HUB
Environmental Conditions: Temperature: from -10oC to 50oC
Humidity: up to 90% RH, non-condensed
Dimensions: 305 x 79 x 39 mm (with microphone and preamplifier)
Weight: Approx. 0.6 kg with batteries
1each function parallel to the meter mode
2with USB 1.1 Host function not active and backlight off
