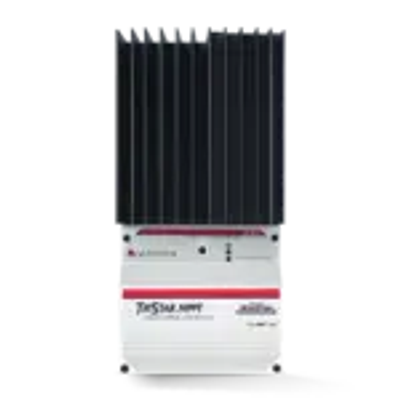

Morningstar - Model TriStar MPPT - Advanced Off-Grid PV Controller
The industry-leading TriStar MPPT with TrakStar Technology is an advanced maximum power point tracking controller for larger off-grid photovoltaic (PV) energy systems up to 3kWp. It can charge Lead-Acid, Lithium, NiCd, and other battery chemistries. Custom settings programming is required for Lithium, NiCd, and other battery chemistries.
Most popular related searches
MPPT charge controller
off-grid photovoltaic
battery chemistry
charge controller
photovoltaic system
photovoltaic system engineering
solar installation
grid photovoltaic
rural-electrification
photovoltaic energy system
- Maximizes energy harvest – superior peak power tracking over conventional MPPT controllers.
- Highest peak efficiency for off-grid controllers in the industry: 99% (TS150).
- Built for reliability and performance, with an oversized heatsink and over-spec’d components. Fully-rated for operation at temperatures up to 45C.
- Extensive networking and communications features enable system monitoring, data logging, and adjustability.
- On-board RS-232 port included on all models; Ethernet included on all 60A models.
- Extensive electronic protections include short-circuit, over-current and reverse polarity to ensure the controller will not be damaged by wiring mistakes or overloads.
- Certified to IEC 62093 which establishes requirements for the design qualification of balance-of-system (BOS) components used in terrestrial photovoltaic (PV) systems.
- Fanless design for long-term reliability.
An iconic design, TriStar MPPT’s have been proven in solar installations around the globe and remain the first choice for designers of mission-critical systems where failure is not an option.
“one of the best charge controllers out there… these things are tanks”
