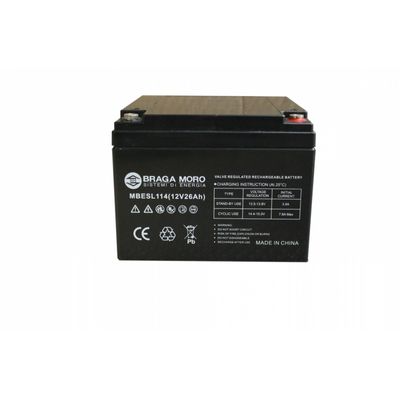

Braga Moro - Model 12V 26Ah - MBESL114 -AGM Battery
FromBraga Moro
The battery is constructed byplates, separators, safety valves andcontainer. Since the electrolyte is held by a glass mat separator andplates, the battery can use in any direction and position withoutleakage
Most popular related searches
fully charged battery
energy storage
absorbent glass mat battery
energy storage battery
battery separator
battery storage
- Nominal Voltage : 2V
- Number of Cell : 6
- Life : 5 years
- Nominal Capacity at 77° F (25° C)
- 20-hour rate (1.30 A, 10.5 V) : 26.0 Ah
- 10-hour rate (2.42 A, 10.5 V) : 24.2 Ah
- 5-hour rate (4.48A, 10.5 V) : 22.4 Ah
- 1-hour rate (16.9 A, 9.6V) : 16.9 Ah
- Internal Resistance : Fully Charged Battery at 77°F (25° C) : 13 mΩ
- Self-Discharge : 3% of capacity declined per month at 20 °C (average)
- Operation Temperature Range
- Discharge : -20~60 °C
- Charge..-10~60 °C
- Storage.-20~60 °C
- Max. Discharge Current at 77° F (25° C) : 300 A (5s)
- Short Circuit Current390 A
