AIC - Model PM4-IV2 -Panel Mount Dual Bargraph Display

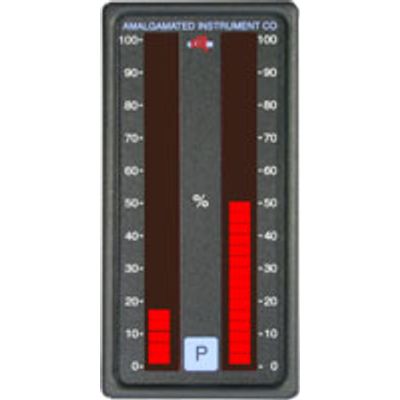

The PM4-IV2 is a panel mount dual bargraph display for two analog inputs. The bars are 32 red LEDs and each input can be individually configured for input type (4-20mA, 0-2VDC or 0-20VDC) and can be individually scaled. Setup is achieved with pushbuttons on the rear of the instrument. The displays can be configured to show a bar or a single dot indication. The inputs are isolated from each other and the power supply.
