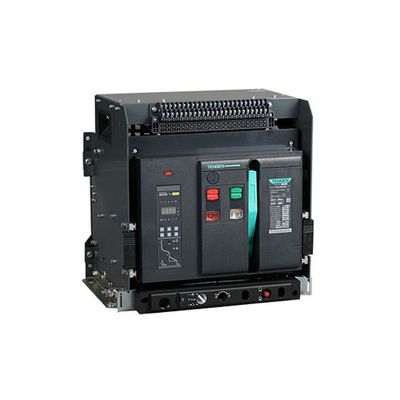

Tengen - Model TGW1N Series -Air Circuit Breaker

SHARE

TGW1N series Air Circuit Breaker is suitable for distribution network with AC 50Hz, rated voltage of AC380V-AC690V, rated current of 200A-6,300A. It is used for distributing electric energy and protecting circuits and power units from overload, short circuit, undervoltage, one-phase ground or residual current. International Standards and Certification: CE CB. Comply with the standards: IEC/EN60947-2.

Most popular related searches
circuit breaker
distributed electricity
power transformer
power distribution
electrical energy distribution
distributed energy
energy distribution
transformer coil
distributive power
distributed power
  1. Installation category : Class IV for main circuits of the circuit breaker and voltage tripper coil and primary coil of power transformer; Class III for auxiliary circuit and control circuits. The inclination with the vertical plane does not exceed 5° when installation.
  2. Pollution class: 3
  3. Altitude ≤2,000m, derating when above 2,000 m.
  4. Atmospheric conditions
    • The relative humidity does not exceed 50% at the ambient temperature of +40°C, and a higher relative humidity at the lower temperature may be allowed;
    • The relative humidity at the low temperature +25°C can be up to 90%. The necessary measures can be taken for condensation on the product surface due to temperature changes.
  5. Protection level IP20 for the front and IP00 for the remaining
  6. Electromagnetic interference Suitable for electromagnetic environment
